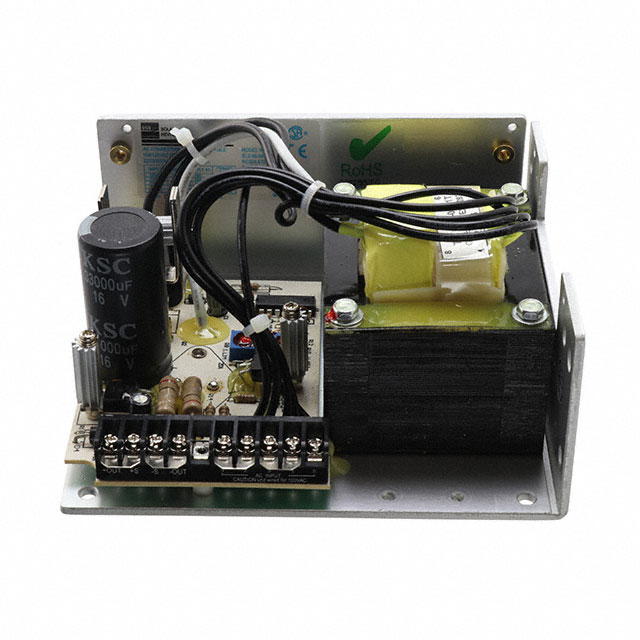

SLS-05-060-1T

SolaHD

AC/DC CONVERTER 5V 30W

Search across all available documentation for this part.

SolaHD

AC/DC CONVERTER 5V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	SLS-05-060-1T

Applications	ITE (Commercial)
Approval Agency	CSA, cURus
Current - Output 1	6 A
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	30 W
Size / Dimension [x]	5.62 in
Size / Dimension [x]	142.7 mm
Size / Dimension [y]	4.87 in
Size / Dimension [y]	123.7 mm
Size / Dimension [z]	32.5 mm
Size / Dimension [z]	1.28 in
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Type	Approval Agency	Voltage - Output 1	Applications	Number of Outputs	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]
SolaHD SLS-05-090-1T	240 VAC	100 VAC	Chassis Mount	Adjustable Output Remote Sense	69.9 mm	123.7 mm	4.87 in	7 "	2.75 in	177.8 mm	9 A	Open Frame	CSA cURus	5 V	ITE (Commercial)	1
SolaHD SLS-05-060-1T	240 VAC	100 VAC	Chassis Mount	Adjustable Output Remote Sense			4.87 in	5.62 in	1.28 in	142.7 mm	6 A	Open Frame	CSA cURus	5 V	ITE (Commercial)	1	30 W	32.5 mm	123.7 mm
SolaHD SLS-05-120-1T	240 VAC	100 VAC	Chassis Mount	Adjustable Output Remote Sense			4.87 in	9 in	2.75 in	228.6 mm	12 A	Open Frame	CSA cURus	5 V	ITE (Commercial)	1		69.9 mm	123.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 5V 100 ~ 240 VAC Input
