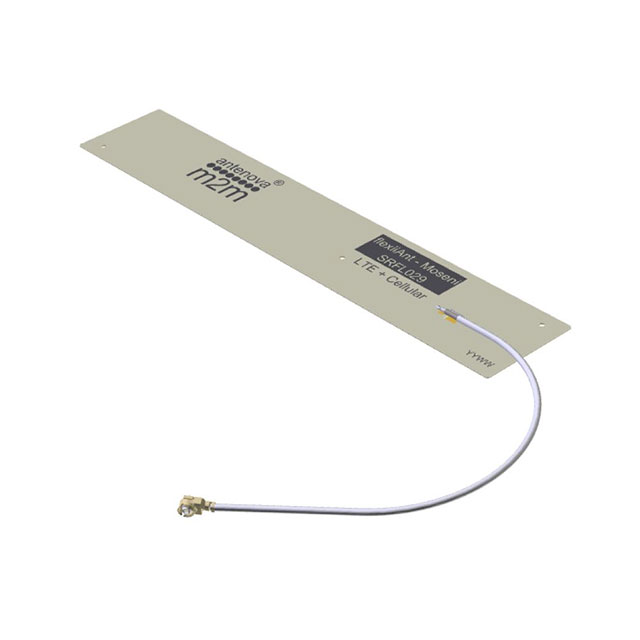

SRFL029-100

Active

Antenova

RF ANT 748MHZ/892MHZ FLAT PATCH

Search across all available documentation for this part.

Active

Antenova

RF ANT 748MHZ/892MHZ FLAT PATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

ANTENNA LTE -1.7DBI GAIN 798MHZ/960MHZ/2170MHZ/2400MHZ/2690MHZ BAG

Part	Frequency (Center/Band)	RF Family/Standard	Frequency Group	Mounting Type	Termination	Gain	Return Loss	Antenna Type	Number of Bands [custom]	VSWR	Frequency Range [Max]	Frequency Range [Min]	Features	Features	Height (Max)	Height (Max) [Max]
Antenova SRFL029-200	1.94 GHz, 2.35 GHz, 2.6 GHz, 748 MHz, 892 MHz	Cellular	Wide Band	Adhesive	IPEX MHF1, U.FL (UMCC)	3.8 dBi	-8 dB	Flat Patch	5	1.7	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	Cable	200 mm	0.15 mm	0.006 in
Antenova SRFL029-150	1.94 GHz, 2.35 GHz, 2.6 GHz, 748 MHz, 892 MHz	Cellular	Wide Band	Adhesive	IPEX MHF1, U.FL (UMCC)	3.8 dBi	-8 dB	Flat Patch	5	1.7	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	Cable - 150mm		0.15 mm	0.006 in
Antenova SRFL029-100	1.94 GHz, 2.35 GHz, 2.6 GHz, 748 MHz, 892 MHz	Cellular	Wide Band	Adhesive	IPEX MHF1, U.FL (UMCC)	3.8 dBi	-8 dB	Flat Patch	5	1.7	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	Cable	100 mm	0.15 mm	0.006 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GSM, LTE, W-CDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
