1-926476-0

Active

TE Connectivity AMP Connectors

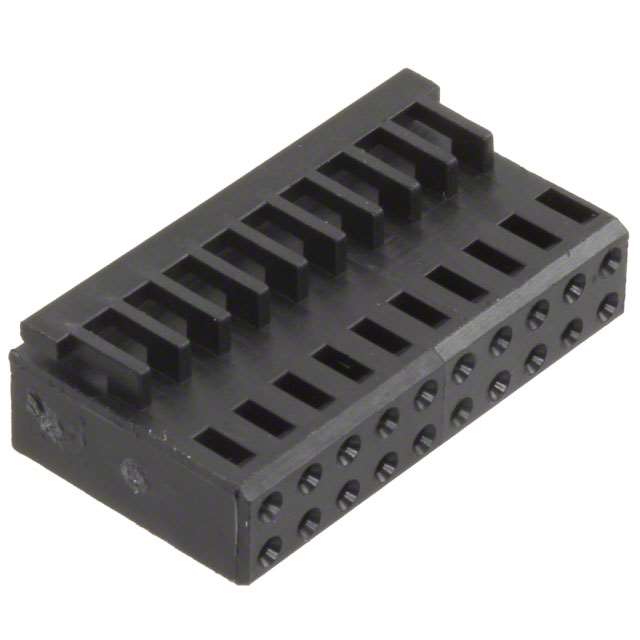

CONN RCPT HSG 20POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 20POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 10POS 2.54MM

Part	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Mounting Type	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Connector Type	Contact Termination	Color	Number of Rows	Number of Positions	Number of Positions
TE Connectivity AMP Connectors 926476-5	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	Female Socket	-65 ░C	105 ░C	Contacts Not Included	Receptacle	Crimp	Black	2	10
TE Connectivity AMP Connectors 1-926476-4	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	Female Socket	-65 ░C	105 ░C	Contacts Not Included	Receptacle	Crimp	Black	2	28
TE Connectivity AMP Connectors 1-926476-0	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	Female Socket	-65 ░C	105 ░C	Contacts Not Included	Receptacle	Crimp	Black	2	20
TE Connectivity AMP Connectors 1-926476-3	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	Female Socket	-65 ░C	105 ░C	Contacts Not Included	Receptacle	Crimp	Black	2		16
TE Connectivity AMP Connectors 926476-8	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	Female Socket	-65 ░C	105 ░C	Contacts Not Included	Receptacle	Crimp	Black	2		16
