XRP7613EVB

Active

MaxLinear, Inc.

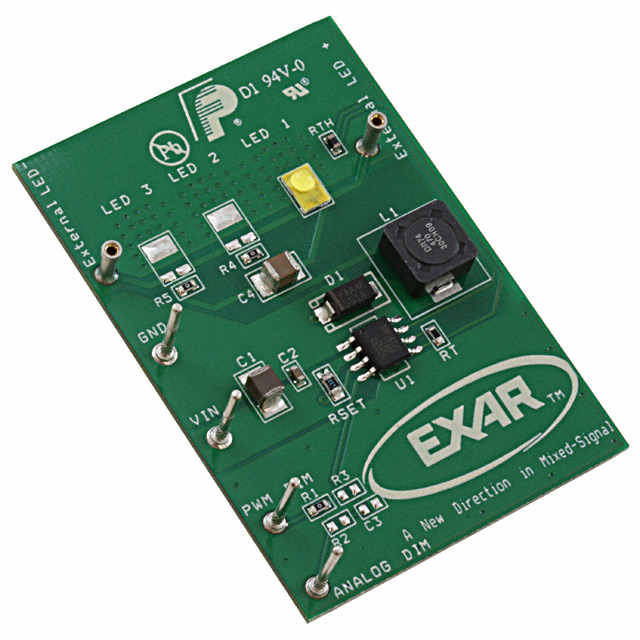

BOARD EVAL FOR XRP7613

Search across all available documentation for this part.

Active

MaxLinear, Inc.

BOARD EVAL FOR XRP7613

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRP7613EVB	XRP7613 Series

Applications	-	Lighting
Current - Output / Channel [custom]	1.2 A	1.2 A
Dimming	-	Analog, PWM
Features	Dimmable	Dimmable
Frequency	-	1 MHz
Internal Switch(s)	-	True
Mounting Type	-	Surface Mount
Number of Outputs	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Outputs and Type	1 Non-Isolated Output	1 Non-Isolated Output
Package / Case	-	0.154 in
Package / Case	-	8-SOIC
Package / Case	-	3.9 mm
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	8-SOIC-EP
Topology	-	Step-Down (Buck)
Type	-	DC DC Regulator
Utilized IC / Part	XRP7613	XRP7613
Voltage - Input [Max]	36 V	36 V
Voltage - Input [Min]	7 V	7 V
Voltage - Supply (Max)	-	36 V
Voltage - Supply (Min)	-	7 V

IC LED DRVR RGLTR PWM 1.2A 8SOIC

Part	Applications	Mounting Type	Supplier Device Package	Voltage - Supply (Min) [Min]	Internal Switch(s)	Voltage - Supply (Max) [Max]	Dimming	Frequency	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Topology	Current - Output / Channel [custom]	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Outputs and Type	Features
MaxLinear, Inc. XRP7613IDBTR-F	Lighting	Surface Mount	8-SOIC-EP	7 V		36 V	Analog, PWM	1 MHz	1	DC DC Regulator	85 °C	-40 °C	0.154 in	8-SOIC	3.9 mm	Step-Down (Buck)	1.2 A
MaxLinear, Inc. XRP7613EVB																	1.2 A	XRP7613	36 V	7 V	Board(s)	1 Non-Isolated Output	Dimmable
