NMF2412SC

Active

Murata Power Solutions Inc.

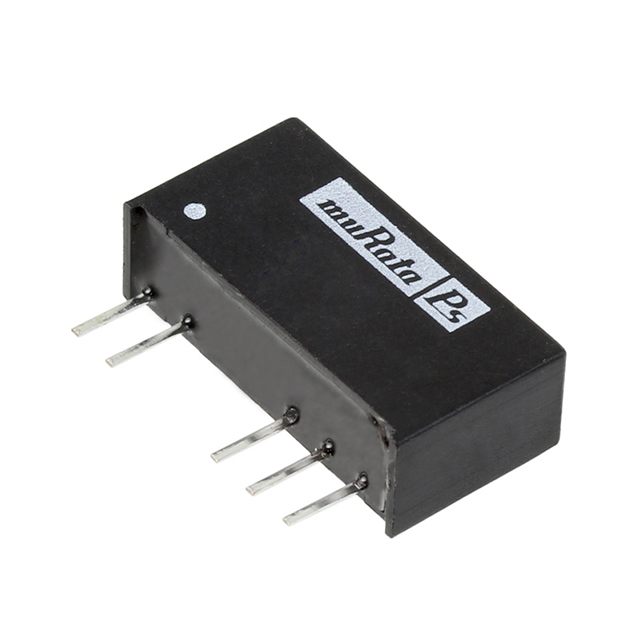

DC DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NMF2412SC	NMF24 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	83 mA	67 - 100 mA
Efficiency	62 %	50 - 62 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Package / Case	7-SIP Module, 5 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 5 Leads
Size / Dimension	-	0.77 - 19.6 in
Size / Dimension	-	0.27 - 6.9 "
Size / Dimension	-	0.39 - 9.9 "
Size / Dimension [x]	19.5 mm	19.5 mm
Size / Dimension [x]	0.77 "	0.77 "
Size / Dimension [y]	6 mm	6 mm
Size / Dimension [y]	0.24 in	0.24 in
Size / Dimension [z]	0.39 in	0.39 in
Size / Dimension [z]	10 mm	10 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	25.2 V	25.2 V
Voltage - Input (Min) [Min]	22.8 V	22.8 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	12 V	5 - 15 V

DC DC CONVERTER 12V 1W

Part	Voltage - Isolation	Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. NMF2412SC	1000 V	Isolated Module	ITE (Commercial)	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	25.2 V	22.8 V	Through Hole	7-SIP Module, 5 Leads	1	83 mA	70 °C	12 V	62 %
Murata Power Solutions Inc. NMF2415SC	1000 V	Isolated Module	ITE (Commercial)	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	25.2 V	22.8 V	Through Hole	7-SIP Module, 5 Leads	1	67 mA	70 °C	15 V	62 %
Murata Power Solutions Inc. NMF2409DC	1000 V	Isolated Module	ITE (Commercial)							25.2 V	22.8 V	Through Hole	14-DIP Module, 5 Leads	1	100 mA	70 °C	9 V	62 %	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm
Murata Power Solutions Inc. NMF2405SC	1000 V	Isolated Module	ITE (Commercial)	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	25.2 V	22.8 V	Through Hole	7-SIP Module, 5 Leads	1	100 mA	70 °C	5 V	50 %
Murata Power Solutions Inc. NMF2405DC	1000 V	Isolated Module	ITE (Commercial)							25.2 V	22.8 V	Through Hole	14-DIP Module, 5 Leads	1	100 mA	70 °C	5 V	50 %	0.77 in, 19.6 mm	0.27 ", 6.9 mm	0.39 ", 9.9 mm
