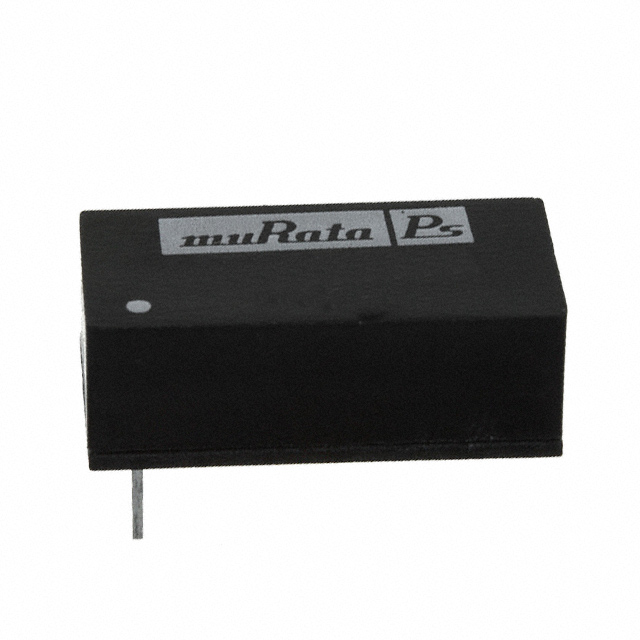

NMF2409DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 9V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMF2409DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 9V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMF2409DC | NMF24 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 100 mA | 67 - 100 mA |
| Efficiency | 62 % | 50 - 62 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 14-DIP Module, 5 Leads | 7-SIP Module, 5 Leads, 14-DIP Module, 5 Leads |
| Size / Dimension | - | 6 mm |
| Size / Dimension | - | 0.39 in |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 0.24 in |
| Size / Dimension | - | 19.5 mm |
| Size / Dimension | - | 0.77 " |
| Size / Dimension [x] | 0.77 in, 19.6 mm | 0.77 - 19.6 in |
| Size / Dimension [y] | 0.39 ", 9.9 mm | 0.39 - 9.9 " |
| Size / Dimension [z] | 0.27 ", 6.9 mm | 0.27 - 6.9 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 25.2 V | 25.2 V |
| Voltage - Input (Min) [Min] | 22.8 V | 22.8 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 9 V | 5 - 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NMF24 Series
MODULE DC-DC 24VIN 1-OUT 5V 0.1A 1W 5-PIN SIP
| Part | Voltage - Isolation | Type | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Mounting Type | Package / Case | Number of Outputs | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMF2405SC | ||||||||||||||||||||||
Murata Power Solutions Inc. NMF2412SC | 1000 V | Isolated Module | ITE (Commercial) | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 25.2 V | 22.8 V | Through Hole | 7-SIP Module, 5 Leads | 1 | 83 mA | 70 °C | 0 °C | 12 V | 62 % | |||
Murata Power Solutions Inc. NMF2415SC | 1000 V | Isolated Module | ITE (Commercial) | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 25.2 V | 22.8 V | Through Hole | 7-SIP Module, 5 Leads | 1 | 67 mA | 70 °C | 0 °C | 15 V | 62 % | |||
Murata Power Solutions Inc. NMF2409DC | 1000 V | Isolated Module | ITE (Commercial) | 25.2 V | 22.8 V | Through Hole | 14-DIP Module, 5 Leads | 1 | 100 mA | 70 °C | 0 °C | 9 V | 62 % | 0.77 in, 19.6 mm | 0.27 ", 6.9 mm | 0.39 ", 9.9 mm | ||||||
Murata Power Solutions Inc. NMF2405SC | 1000 V | Isolated Module | ITE (Commercial) | 6 mm | 0.39 in | 10 mm | 0.24 in | 19.5 mm | 0.77 " | 25.2 V | 22.8 V | Through Hole | 7-SIP Module, 5 Leads | 1 | 100 mA | 70 °C | 0 °C | 5 V | 50 % | |||
Murata Power Solutions Inc. NMF2405DC | 1000 V | Isolated Module | ITE (Commercial) | 25.2 V | 22.8 V | Through Hole | 14-DIP Module, 5 Leads | 1 | 100 mA | 70 °C | 0 °C | 5 V | 50 % | 0.77 in, 19.6 mm | 0.27 ", 6.9 mm | 0.39 ", 9.9 mm |
Description
General part information
NMF24 Series
Isolated Module DC DC Converter 1 Output 9V 100mA 22.8V - 25.2V Input
Documents
Technical documentation and resources
