L1MX-407012V500000

Active

Lumileds

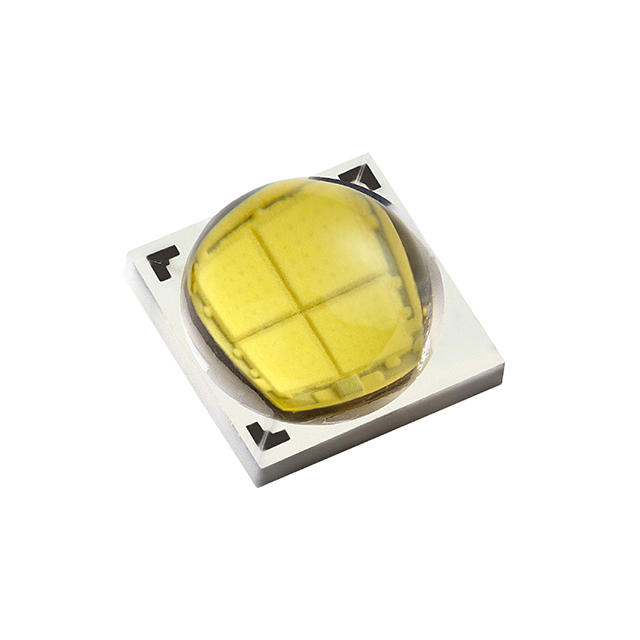

LED LUXEON NEUTRAL WHT 4000K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L1MX-407012V500000

Active

Lumileds

LED LUXEON NEUTRAL WHT 4000K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.28
		10	$ 5.18
		100	$ 4.10
	Digi-Reel®	1	$ 7.28
		10	$ 5.18
		100	$ 4.10
	Tape & Reel (TR)	500	$ 3.62
		1000	$ 3.49
		1500	$ 3.42
		2500	$ 3.38

Description

General part information

L1MX Series

LED Lighting LUXEON MX White, Neutral 4000K 5-Step MacAdam Ellipse 11.3V 700mA 120° 2828 (7070 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L1MX-407012V500000	L1MX Series

CCT (K)	4000 K	2700 - 5700 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Neutral, White	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	70	70 - 90
Current - Max [Max]	1.5 A	1.5 - 6 A
Current - Test	-	2.8 A
Flux @ 25°C, Current - Test	-	872 - 1345 lm
Flux @ 85°C, Current - Test	1195 lm	800 - 1232 lm
Height - Seated (Max) [Max]	3.87 mm	3.87 mm
Height - Seated (Max) [Max]	0.152 in	0.152 in
Lumens/Watt @ Current - Test	151 lm/W	110 - 170 lm/W
Mounting Type	Surface Mount	Surface Mount
Size / Dimension [x]	0.276 "	0.276 "
Size / Dimension [x]	7 mm	7 mm
Size / Dimension [y]	7 mm	7 mm
Size / Dimension [y]	0.276 in	0.276 in
Supplier Device Package	-	2828
Thermal Resistance of Package	-	1.25 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	11.3 V	2.83 - 11.3 V

L1MX Series

LUXEON MXWARM-WHITE 12V CCT 3000K CRI 90

Part	Voltage - Forward (Vf) (Typ)	CCT (K)	Current - Max [Max]	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Lumens/Watt @ Current - Test	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test	Viewing Angle	Flux @ 85°C, Current - Test	CCT (K)	Current - Test
Lumileds L1MX-309012V500000	11.3 V	3000 K	1.5 A	1.25 °C/W	3.87 mm	0.152 in	2828	115 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Warm, White	90	910 lm	120 °	835 lm
Lumileds L1MX-358006V500000	5.65 V		3 A	1.25 °C/W	3.87 mm	0.152 in	2828		Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Warm, White	80		120 °
Lumileds L1MX-579012V300000	11.3 V	5700 K	1.5 A	1.25 °C/W	3.87 mm	0.152 in	2828	132 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Cool, White	90	1046 lm	120 °	965 lm
Lumileds L1MX-308006V500000	5.65 V	3000 K	3 A	1.25 °C/W	3.87 mm	0.152 in	2828	140 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Warm, White	80	1110 lm	120 °	1000 lm
Lumileds L1MX-507003V500000	2.83 V	5000 K	6 A	1.25 °C/W	3.87 mm	0.152 in		155 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Cool, White	70	1345 lm	120 °	1232 lm	5-Step MacAdam Ellipse	2.8 A
Lumileds L1MX-407012V500000	11.3 V	4000 K	1.5 A		3.87 mm	0.152 in		151 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Neutral, White	70		120 °	1195 lm
Lumileds L1MX-358012V300000	11.3 V	3500 K	1.5 A	1.25 °C/W	3.87 mm	0.152 in	2828		Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Warm, White	80		120 °
Lumileds L1MX-277012V500000	11.3 V	2700 K	1.5 A	1.25 °C/W	3.87 mm	0.152 in	2828	138 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Warm, White	70	1095 lm	120 °	1050 lm
Lumileds L1MX-309006V500000	5.65 V	3000 K	3 A	1.25 °C/W	3.87 mm	0.152 in	2828	115 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Warm, White	90	910 lm	120 °	835 lm
Lumileds L1MX-577012V500000	11.3 V	5700 K	1.5 A	1.25 °C/W	3.87 mm	0.152 in	2828	170 lm/W	Surface Mount	7 mm	0.276 in	0.276 "	7 mm	Cool, White	70	1345 lm	120 °	1232 lm
