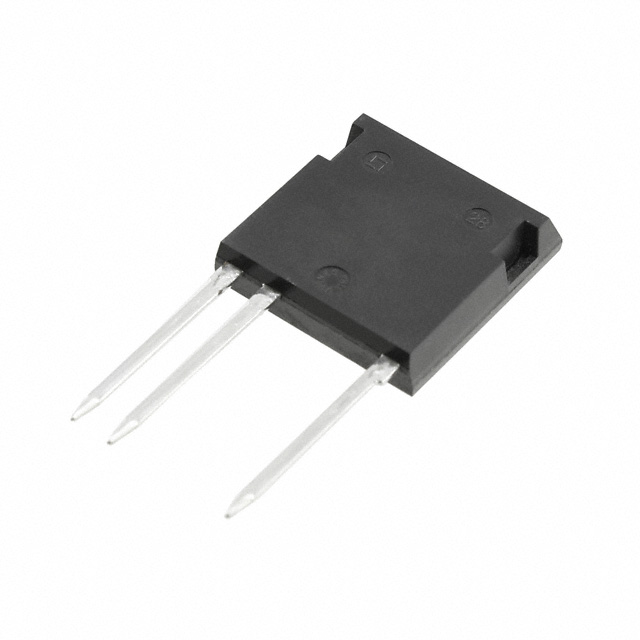

CS20-22MOF1

Active

IXYS

SCR 2.2KV I4-PAC

Search across all available documentation for this part.

Active

IXYS

SCR 2.2KV I4-PAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 2.2 kV Standard Recovery Through Hole ISOPLUS i4-PAC™

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CS20-22MOF1	CS20 Series

Current - Gate Trigger (Igt) (Max) [Max]	250 mA	65 - 250 mA
Current - Hold (Ih) (Max) [Max]	150 mA	100 - 300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	200 A	200 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	200 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	215 A
Current - Off State (Max) [Max]	50 µA	2 - 50 µA
Current - On State (It (AV)) (Max)	-	19 A
Current - On State (It (AV)) (Max) [Max]	18 A	18 A
Current - On State (It (RMS)) (Max)	-	30 A
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	i4-Pac™-5 (3 Leads)	i4-Pac™-5 (3 Leads), D3PAK (2 Leads + Tab), TO-268AA, TO-268-3, TO-247-3
SCR Type	Standard Recovery	Standard Recovery
Supplier Device Package	ISOPLUS i4-PAC™	ISOPLUS i4-PAC™, TO-268AA, TO-247AD
Voltage - Gate Trigger (Vgt) (Max)	-	2.5 V
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.3 V	1 - 2.3 V
Voltage - Off State	2.2 kV	1.2 - 2.5 kV
Voltage - On State (Vtm) (Max) [Max]	1.5 V	1.5 - 3 V

SCR 2.2KV I4-PAC

Part	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	SCR Type	Current - On State (It (AV)) (Max) [Max]	Current - Off State (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Mounting Type	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - On State (Vtm) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current - On State (It (AV)) (Max)	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]
IXYS CS20-22MOF1	ISOPLUS i4-PAC™	250 mA	i4-Pac™-5 (3 Leads)	Standard Recovery	18 A	50 µA	125 °C	-40 °C	150 mA	Through Hole	2.2 kV	200 A	1.5 V	2.3 V
IXYS CS20-25MOT1-TUB	TO-268AA	250 mA	D3PAK (2 Leads + Tab), TO-268-3, TO-268AA	Standard Recovery		50 µA			300 mA	Surface Mount	2.5 kV	200 A	3 V		2.5 V	-10 °C	158 °F
IXYS CS20-12IO1	TO-247AD	65 mA	TO-247-3	Standard Recovery		2 mA	125 °C	-40 °C	100 mA	Through Hole	1.2 kV		2.1 V	1 V				19 A	30 A	200 A	215 A
IXYS CS20-25MO1F	ISOPLUS i4-PAC™		i4-Pac™-5 (3 Leads)	Standard Recovery						Through Hole	2.5 kV
