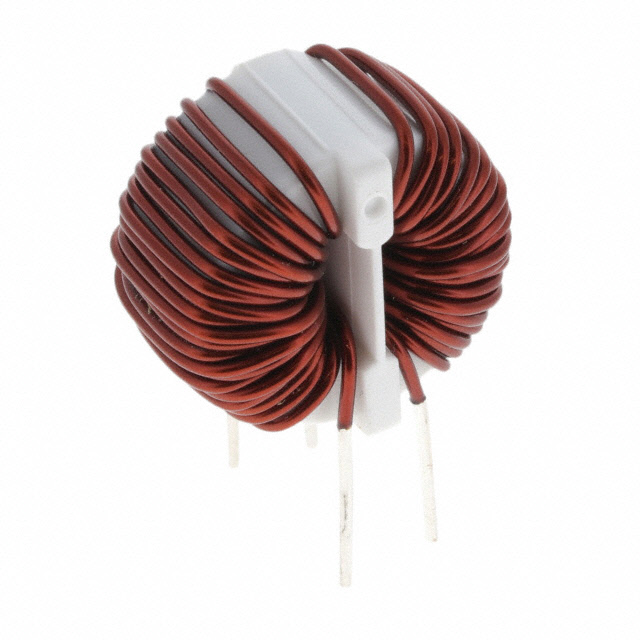

SC-05-1100

Active

KEMET

COMMON MODE FILTER, 11MH, 5A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKEM_LF0005_SC.pdf SC-05-1100 Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC-05-1100

Current Rating (Max) [Max]	5 A
DC Resistance (DCR) (Max) [Max]	55 mOhm
Filter Type	Power Line
Height (Max) [Max]	1.339 in
Height (Max) [Max]	34 mm
Inductance @ Frequency	11 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Package / Case	No Base, Vertical, 4 PC Pin
Size / Dimension [diameter]	34 mm
Size / Dimension [diameter]	1.339 "
Voltage Rating - AC	250 V
Voltage Rating - DC	250 V

SC-05 Series

Part	Number of Lines	Voltage Rating - DC	Current Rating (Max) [Max]	Mounting Type	Inductance @ Frequency	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Filter Type	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max)	Size / Dimension [x]	Size / Dimension [x]	Height (Max) [Max]
KEMET SC-05-492JH	2	250 V	5 A	Through Hole	4.9 mH	Horizontal	4 Lead	0.709 in	18 mm	250 V	-40 °C	120 °C	Power Line
KEMET SC-05-812JH	2	250 V	5 A	Through Hole	8.1 mH	Horizontal	4 Lead	0.709 in	18 mm	250 V	-40 °C	120 °C	Power Line
KEMET SC-05-E06H	2	250 V	5 A	Through Hole	600 µH	Horizontal No Base	4 Lead	0.512 in	13 mm	250 V	-40 °C	120 °C	Power Line	25 mm	0.984 "	17.5 mOhm
KEMET SC-05-1503	2	250 V	5 A	Through Hole	10.5 mH	4 PC Pin No Base Vertical		1.339 in	34 mm	250 V	-40 °C	105 ░C	Power Line	34 mm	1.339 "	100 mOhm
KEMET SC-05-D030	2	250 V	5 A	Through Hole	30 µH	4 PC Pin No Base Vertical		0.984 in	25 mm	250 V	-40 °C	105 ░C	Power Line	25 mm	0.984 "		0.748 in	19 mm	20 mOhm
KEMET SC-05-503	2	250 V	4 A	Through Hole	5 mH	Horizontal No Base	4 Lead			250 V	-40 °C	105 ░C	Power Line	34 mm	1.339 "	80 mOhm				0.906 in	23 mm
KEMET SC-05-1100	2	250 V	5 A	Through Hole	11 mH	4 PC Pin No Base Vertical		1.339 in	34 mm	250 V	-40 °C	120 °C	Power Line	34 mm	1.339 "	55 mOhm
KEMET SC-05-103	2	250 V	5 A	Through Hole	1 mH	Horizontal No Base	4 Lead	0.728 in	18.5 mm	250 V	-40 °C	105 ░C	Power Line	25 mm	0.984 "	50 mOhm
KEMET SC-05-80J	2	250 V	4 A	Through Hole	8 mH 100 kHz	Vertical	4 Lead	1.299 in		250 V	-40 °C	120 °C	Power Line			90 mOhm	0.906 in	23 mm				33 mm	34 mm	1.339 "
KEMET SC-05-300	2	250 V	5 A	Through Hole	3 mH	4 PC Pin No Base Vertical			1.26 in	250 V	-40 °C	105 ░C	Power Line	32 mm	1.26 "	55 mOhm									32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.47
		24	$ 2.90
		48	$ 2.27
		120	$ 2.22
Newark	Each	1	$ 4.16
		10	$ 2.68
		25	$ 2.62
		50	$ 2.56
		100	$ 2.50
		500	$ 2.43
		1000	$ 2.36
		2500	$ 2.31

Description

General part information

SC-05 Series

11 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5A DCR 55mOhm

Documents

Technical documentation and resources

KEM_LF0005_SC.pdf

Datasheet

SC-05-1100 Spec

Datasheet
