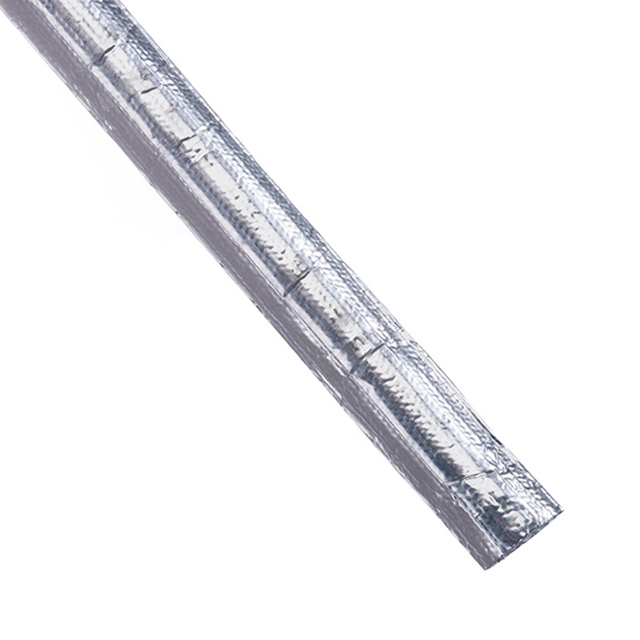

TTN0.38SV300

Active

Techflex

SLEEVING 0.375" ID 300' SILVER

Search across all available documentation for this part.

Active

Techflex

SLEEVING 0.375" ID 300' SILVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Fiberglass, Aluminized, Halogen Free Convoluted - Braided Sleeving, Insulated 0.375" (9.52mm) 300' (91.44m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TTN0.38SV300	TTN0 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Silver	Silver
Diameter - Inside [diameter]	9.52 mm	9.52 - 19.05 mm
Diameter - Inside [diameter]	0.375 in	0.375 - 0.75 in
Diameter - Outside [diameter]	10.8 mm	10.8 - 20.32 mm
Diameter - Outside [diameter]	0.425 in	0.425 - 0.8 in
Features	Clean Cut, Chemical Resistant	Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant, Heat Resistant	Flame Retardant, Heat Resistant
Length	300 ft	100 - 300 ft
Length	91.44 m	30.48 - 91.44 m
Liquid Protection	Gasoline Resistant	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Flammable	Non Flammable
Operating Temperature [Max]	255 °C	255 °C
Operating Temperature [Min]	-60 °C	-60 °C
Type	Sleeving, Insulated	Sleeving, Insulated
Type Attributes	Convoluted - Braided	Convoluted - Braided
Wall Thickness [custom]	0.025 in	0.025 in
Wall Thickness [custom]	0.64 mm	0.64 mm

SLEEVING 0.375" ID 300' SILVER

Part	Length	Length	Abrasion Protection	Wall Thickness [custom]	Wall Thickness [custom]	Features	Heat Protection	Operating Temperature [Min]	Operating Temperature [Max]	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Type Attributes	Liquid Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material Flammability Rating	Type
Techflex TTN0.38SV300	300 ft	91.44 m	Abrasion Resistant	0.025 in	0.64 mm	Chemical Resistant, Clean Cut	Flame Retardant, Heat Resistant	-60 °C	255 °C	Aluminized, Fiberglass, Halogen Free	10.8 mm	0.425 in	Silver	Convoluted - Braided	Gasoline Resistant	9.52 mm	0.375 in	Non Flammable	Sleeving, Insulated
Techflex TTN0.75SV100	100 ft	30.48 m	Abrasion Resistant	0.025 in	0.64 mm	Chemical Resistant, Clean Cut	Flame Retardant, Heat Resistant	-60 °C	255 °C	Aluminized, Fiberglass, Halogen Free	20.32 mm	0.8 in	Silver	Convoluted - Braided	Gasoline Resistant	19.05 mm	0.75 in	Non Flammable	Sleeving, Insulated
