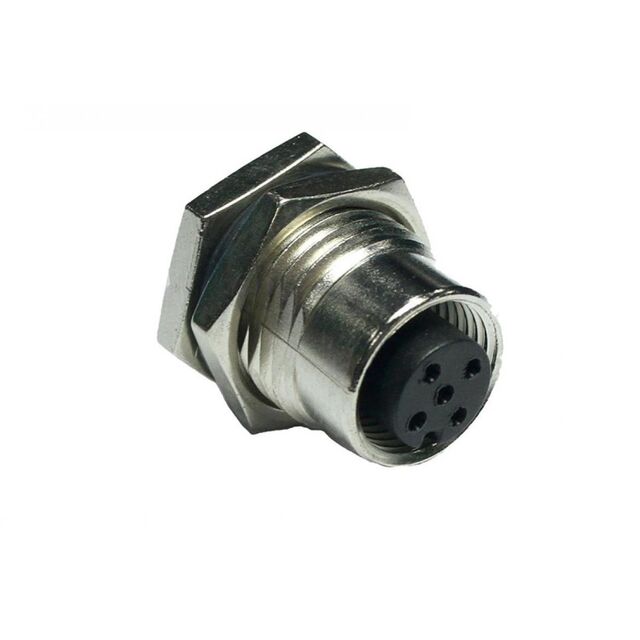

M12B-05PFFS-SF8001

Active

Amphenol LTW

M12 PANEL SOLDER CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M12 PANEL SOLDER CONN

Technical Specifications

Parameters and characteristics for this part

Specification	M12B-05PFFS-SF8001

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Shell Material	Voltage Rating	Primary Material	Ingress Protection	Shielding	Connector Type	Mounting Feature	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size - Insert	Contact Finish - Mating	Orientation	Insert Material	Current Rating (Amps)	Color
Amphenol LTW M12B-05PFFS-SH8002	Zinc Alloy	60 VDC	Metal	IP68 IP69K	Unshielded	Female Sockets Plug	Bulkhead - Rear Side Nut	Nickel	-40 °C	105 ░C	Copper Alloy	M12-5	Gold	B	Polyamide (PA) Nylon Glass Filled	4 A	Silver
Amphenol LTW M12B-05PFFS-SH8001	Zinc Alloy	60 VDC	Metal	IP68 IP69K	Unshielded	Female Sockets Plug	Bulkhead - Rear Side Nut	Nickel	-40 °C	105 ░C	Copper Alloy	M12-5	Gold	B	Polyamide (PA) Nylon Glass Filled	4 A	Silver
Amphenol LTW M12B-05PFFS-SF8001	Zinc Alloy	60 VDC	Metal	IP68 IP69K	Unshielded	Female Sockets Plug	Bulkhead - Front Side Nut	Nickel	-40 °C	105 ░C	Copper Alloy	M12-5	Gold	B	Polyamide (PA) Nylon Glass Filled	4 A	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
