WP7A-S016VA1-R8000

Active

JAE Electronics

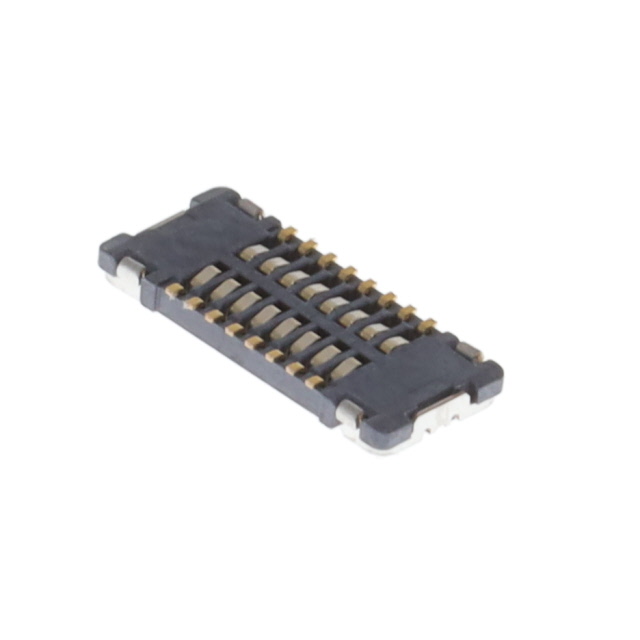

CONN RCPT 16POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 16POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WP7A-S016VA1-R8000

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	0.71 mm
Height Above Board [z]	0.028 in
Mated Stacking Heights	0.7 mm
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Features	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Number of Positions
JAE Electronics WP7A-S010VA1-R8000	Center Strip Contacts Receptacle	Solder Retention	Surface Mount	10	4 Áin	0.1 Ám	0.016 in	0.4 mm	Gold	2	0.71 mm	0.028 in	0.7 mm
JAE Electronics WP7A-S016VA1-R8000	Center Strip Contacts Receptacle	Solder Retention	Surface Mount		4 Áin	0.1 Ám	0.016 in	0.4 mm	Gold	2	0.71 mm	0.028 in	0.7 mm	16
JAE Electronics WP7A-S010VA1-R6000	Center Strip Contacts Receptacle	Solder Retention	Surface Mount	10	4 Áin	0.1 Ám	0.016 in	0.4 mm	Gold	2	0.71 mm	0.028 in	0.7 mm
JAE Electronics WP7A-S016VA1-R6000	Center Strip Contacts Receptacle	Solder Retention	Surface Mount		4 Áin	0.1 Ám	0.016 in	0.4 mm	Gold	2	0.71 mm	0.028 in	0.7 mm	16
JAE Electronics WP7A-S016VA1-R500	Center Strip Contacts Receptacle	Solder Retention	Surface Mount		4 Áin	0.1 Ám	0.016 in	0.4 mm	Gold	2	0.71 mm	0.028 in	0.7 mm	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
