010832PW012

Active

Essentra Components

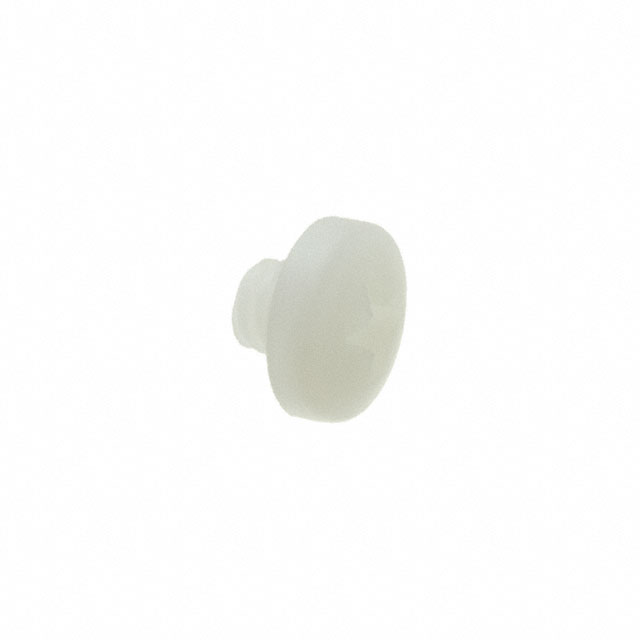

PAN PHILLIPS SCREW 8-32 THREAD 1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

010832PW012

Active

Essentra Components

PAN PHILLIPS SCREW 8-32 THREAD 1

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		5	$ 0.07
		10	$ 0.06
		25	$ 0.05
		50	$ 0.05
		100	$ 0.05
		250	$ 0.04
		500	$ 0.04
		1000	$ 0.04

Description

General part information

010832PW Series

#8-32 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	010832PW012	010832PW Series

Drive Type	Phillips	Phillips
Head Diameter [diameter]	0.314 in	0.314 in
Head Diameter [diameter]	7.98 mm	7.98 mm
Head Height [z]	0.11 in	0.11 in
Head Height [z]	2.79 mm	2.79 mm
Length - Below Head	-	0.625 - 22.23 "
Length - Below Head	-	0.875 - 38.1 mm
Length - Below Head	-	0.5 - 0.75 "
Length - Below Head	-	0.438 in
Length - Below Head	-	11.11 mm
Length - Below Head	-	0.875 - 1.875 in
Length - Below Head	-	47.63 mm
Length - Below Head	-	1/2
Length - Overall	0.235 in	0.235 - 1.61 in
Length - Overall	5.97 mm	5.97 - 40.89 mm
Length - Overall	-	0.735 - 1.985 "
Length - Overall	-	18.67 - 50.42 mm
Material	Nylon	Nylon
Screw Head Type	Pan Head	Pan Head
Thread Size	#8-32	#8-32
Type	Machine Screw	Machine Screw

010832PW Series

PAN PHILLIPS SCREW 8-32 THREAD 3

Part	Drive Type	Length - Below Head	Length - Below Head	Length - Below Head	Thread Size	Material	Head Diameter [diameter]	Head Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Screw Head Type	Head Height [z]	Head Height [z]	Type	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head [x]	Length - Overall	Length - Overall	Length - Below Head [x]	Length - Below Head
Essentra Components 010832PW075	Phillips	0.75 "	19.05 mm	0.75 "	#8-32	Nylon	0.314 in	7.98 mm	0.86 "	21.84 mm	Pan Head	0.11 in	2.79 mm	Machine Screw
Essentra Components 010832PW229	Phillips				#8-32	Nylon	0.314 in	7.98 mm	1.407 in	35.74 mm	Pan Head	0.11 in	2.79 mm	Machine Screw
Essentra Components 010832PW043	Phillips				#8-32	Nylon	0.314 in	7.98 mm			Pan Head	0.11 in	2.79 mm	Machine Screw	0.438 in	11.11 mm
Essentra Components 010832PW087	Phillips	22.23 mm	0.875 in		#8-32	Nylon	0.314 in	7.98 mm	0.985 in	25.02 mm	Pan Head	0.11 in	2.79 mm	Machine Screw			0.875 in
Essentra Components 010832PW012	Phillips				#8-32	Nylon	0.314 in	7.98 mm			Pan Head	0.11 in	2.79 mm	Machine Screw				0.235 in	5.97 mm
Essentra Components 010832PW062	Phillips	0.625 in	15.88 mm	0.625 in	#8-32	Nylon	0.314 in	7.98 mm	0.735 "	18.67 mm	Pan Head	0.11 in	2.79 mm	Machine Screw
Essentra Components 010832PW150	Phillips		38.1 mm		#8-32	Nylon	0.314 in	7.98 mm			Pan Head	0.11 in	2.79 mm	Machine Screw			1.5 in	1.61 in	40.89 mm
Essentra Components 010832PW187	Phillips				#8-32	Nylon	0.314 in	7.98 mm	1.985 "	50.42 mm	Pan Head	0.11 in	2.79 mm	Machine Screw			1.875 in			47.63 mm
Essentra Components 010832PW050	Phillips		12.7 mm	0.5 in	#8-32	Nylon	0.314 in	7.98 mm			Pan Head	0.11 in	2.79 mm	Machine Screw				0.61 in	15.49 mm		1/2
