242138

Active

Amphenol RF

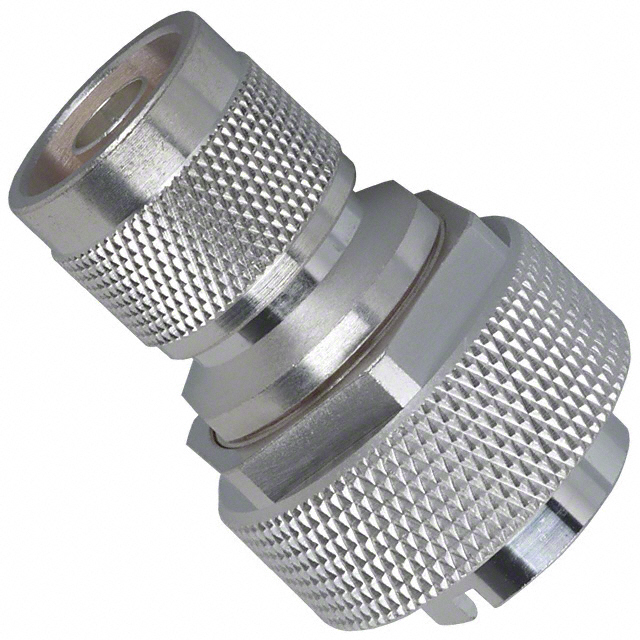

CONN ADAPT N PLUG TO 7/16 PLUG

Deep-Dive with AI

Search across all available documentation for this part.

242138

Active

Amphenol RF

CONN ADAPT N PLUG TO 7/16 PLUG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	242138

Adapter Series	N to 7/16 DIN
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

2421 Series

Part	Features	Adapter Series	Style	Center Contact Plating	Frequency - Max [Max]	Ingress Protection	Body Finish	Conversion Type	Convert From (Adapter End)	Impedance	Body Material	Convert To (Adapter End)	Center Contact Material	Dielectric Material	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Mating Cycles	Mounting Type	Fastening Type	Mounting Feature	Includes
Amphenol RF 242138	Low PIM	N to 7/16 DIN	Straight	Silver	6000 MHz	IP67 - Dust Tight Waterproof	White Bronze	Between Series	N Plug Male Pin	50 Ohms	Brass	7/16 Plug Male Pin	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Plug to Plug	155 °C	-55 °C	Male to Male	500	Free Hanging (In-Line)
Amphenol RF 242185			Straight	Gold	4 GHz		Gold Nickel	Between Series	Female Socket SMB Plug	50 Ohms	Brass	BNC Jack Female Socket	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Plug to Jack	165 °C	-65 ░C	Female to Female		Free Hanging (In-Line)	Bayonet Lock Snap-On
Amphenol RF 242120		N to F	Straight	Gold	2 GHz		Nickel	Between Series	Female Socket N Jack	50 Ohms	Brass	F Jack Female Socket	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Jack to Jack	165 °C	-65 ░C	Female to Female		Free Hanging (In-Line)
Amphenol RF 242157		N to F	Straight	Gold	2 GHz		Nickel	Between Series	N Plug Male Pin	75 Ohms	Brass	F Plug Male Pin	Brass	Polytetrafluoroethylene (PTFE)	Plug to Plug	165 °C	-65 ░C	Male to Male		Free Hanging (In-Line)
Amphenol RF 242184			Straight	Gold	4 GHz		Gold Nickel	Between Series	BNC Plug Male Pin	50 Ohms	Brass	Male Pin SMB Jack	Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	165 °C	-65 ░C	Male to Male		Free Hanging (In-Line)	Bayonet Lock Snap-On
Amphenol RF 242114			Straight	Gold	11 GHz		Nickel	Between Series	SMA Plug Male Pin	50 Ohms	Brass	Male Pin N Plug	Brass	Polytetrafluoroethylene (PTFE)	Plug to Plug	165 °C	-65 ░C	Male to Male		Free Hanging (In-Line)
Amphenol RF 242172		N to MCX	Straight	Gold	6000 MHz		Nickel	Between Series	Female Socket N Jack	50 Ohms	Brass	Female Socket MCX Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Jack to Jack	165 °C	-65 ░C	Female to Female		Free Hanging (In-Line)	Snap-On Threaded
Amphenol RF 242147		SMA to SMB	Straight	Gold	4 GHz		Gold	Between Series	Female Socket SMA Jack	50 Ohms	Brass	Male Pin SMB Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Jack to Jack	165 °C	-65 ░C			Free Hanging (In-Line)	Snap-On Threaded
Amphenol RF 242168		N to MMCX	Straight	Gold	6000 MHz		Nickel	Between Series	Female Socket N Jack	50 Ohms	Brass	Female Socket MMCX Jack	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Jack to Jack	165 °C	-65 ░C	Female to Female		Free Hanging (In-Line)	Snap-On Threaded
Amphenol RF 242190		MCX to TNC	Straight	Gold	6000 MHz		Gold	Between Series		50 Ohms	Brass	Female Socket TNC Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Jack to Jack	165 °C	-65 ░C	Female to Female			Snap-On Threaded	Bulkhead	1 Connector 1 Lockwasher 1 Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 73.73

Description

General part information

2421 Series

Adapter Coaxial Connector N Plug, Male Pin To 7/16 Plug, Male Pin 50 Ohms
