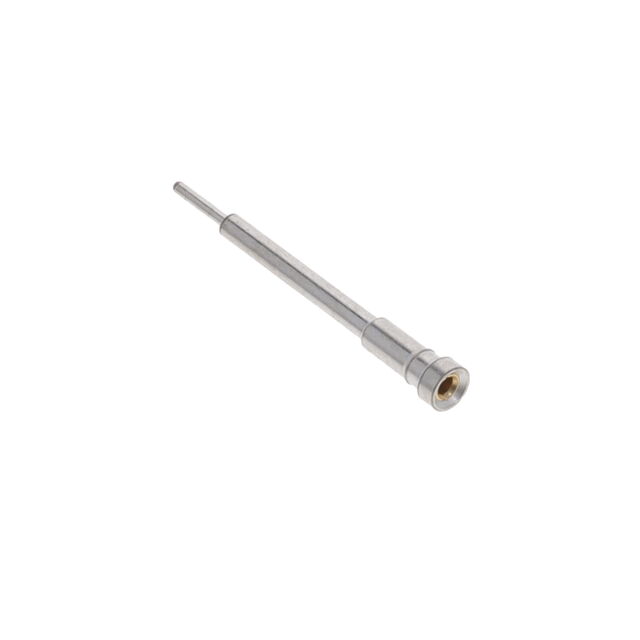

0153-4-15-80-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.39
		10	$ 1.17
		25	$ 1.13
		50	$ 1.10
		100	$ 1.05
		250	$ 0.96
		500	$ 0.86
		1000	$ 0.77
		3000	$ 0.69

Description

General part information

0153-4 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0153-4-15-80-30-27-04-0	0153-4 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Gold	Gold, Tin-Lead, Tin
Contact Finish Thickness	0.76 Ám	0.25 - 2.54 Ám
Contact Finish Thickness	30 Áin	10 - 100 Áin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	1.83 mm	1.83 mm
Flange Diameter [diameter]	0.072 in	0.072 in
Length - Overall [x]	0.59 in	0.59 in
Length - Overall [x]	14.99 mm	14.99 mm
Mounting Hole Diameter [diameter]	0.057 "	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm	1.45 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	0.146 in	0.146 in
Socket Depth	3.71 mm	3.71 mm
Tail Diameter [diameter]	0.46 mm	0.46 mm
Tail Diameter [diameter]	0.018 in	0.018 in
Tail Type	Standard Tail	Standard Tail
Termination	Press-Fit	Press-Fit

0153-4 Series

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Socket Depth	Socket Depth	Termination	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0153-4-15-15-30-14-04-0	-55 °C	125 °C	Gold	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	10 Áin	0.25 Ám	Standard Tail	0.59 in	14.99 mm
Mill-Max Manufacturing Corp. 0153-4-15-01-30-14-04-0	-55 °C	125 °C	Gold	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	10 Áin	0.25 Ám	Standard Tail	0.59 in	14.99 mm
Mill-Max Manufacturing Corp. 0153-4-15-01-30-27-04-0	-55 °C	125 °C	Gold	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	30 Áin	0.76 Ám	Standard Tail	0.59 in	14.99 mm
Mill-Max Manufacturing Corp. 0153-4-15-15-30-27-04-0	-55 °C	125 °C	Gold	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	30 Áin	0.76 Ám	Standard Tail	0.59 in	14.99 mm
Mill-Max Manufacturing Corp. 0153-4-15-01-30-02-04-0	-55 °C	125 °C	Tin-Lead	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	100 µin	2.54 µm	Standard Tail	0.59 in	14.99 mm
Mill-Max Manufacturing Corp. 0153-4-15-80-30-27-04-0	-55 °C	125 °C	Gold	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	30 Áin	0.76 Ám	Standard Tail	0.59 in	14.99 mm
Mill-Max Manufacturing Corp. 0153-4-15-80-30-84-04-0	-55 °C	125 °C	Tin	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	100 µin	2.54 µm	Standard Tail	0.59 in	14.99 mm
Mill-Max Manufacturing Corp. 0153-4-15-80-30-14-04-0	-55 °C	125 °C	Gold	0.146 in	3.71 mm	Press-Fit	Beryllium Copper	1.83 mm	0.072 in	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.46 mm	0.018 in	10 Áin	0.25 Ám	Standard Tail	0.59 in	14.99 mm
