CBP12-M

Active

Panduit Corp

BRD SPT SNAP FIT/LOCK NYLON 3MM

Search across all available documentation for this part.

Active

Panduit Corp

BRD SPT SNAP FIT/LOCK NYLON 3MM

Technical Specifications

Parameters and characteristics for this part

Specification	CBP12-M

Between Board Height	3 mm
Between Board Height	0.118 in
Holding Type	Snap Fit
Length - Overall [x]	0.402 in
Length - Overall [x]	10.2 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.96 mm
Mounting Hole Diameter [diameter]	0.15625 in
Mounting Hole Diameter [diameter]	0.156 in
Mounting Panel Thickness	1.5 mm
Mounting Panel Thickness	0.06 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	0.06 in
Support Panel Thickness	1.5 mm

BRD SPT SNAP FIT/LOCK NYLON 3MM

Part	Mounting Type	Mounting Panel Thickness	Mounting Panel Thickness	Holding Type	Material	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height
Panduit Corp CBP12-M	Snap Lock	1.5 mm	0.06 in	Snap Fit	Nylon	0.402 in	10.2 mm	0.06 in	1.5 mm	0.15625 in	3.96 mm	0.156 in	3.96 mm	0.15625 in	0.156 in	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

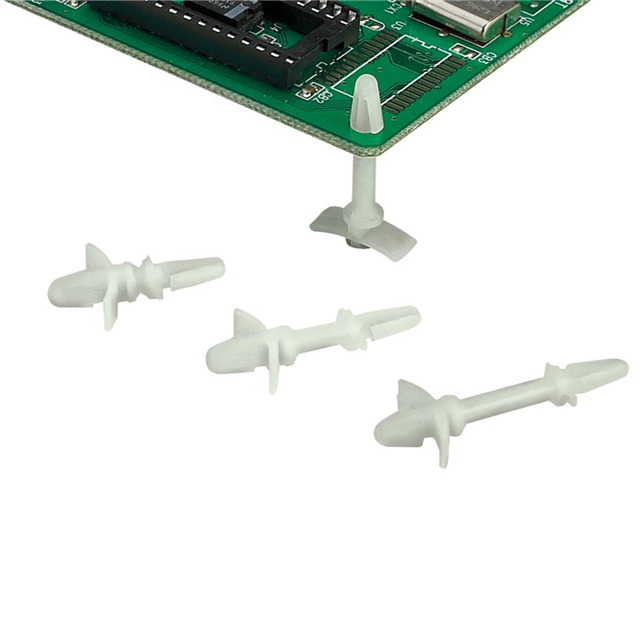

Board Support Snap Fit / Snap Lock Nylon 0.118" (3.00mm)
