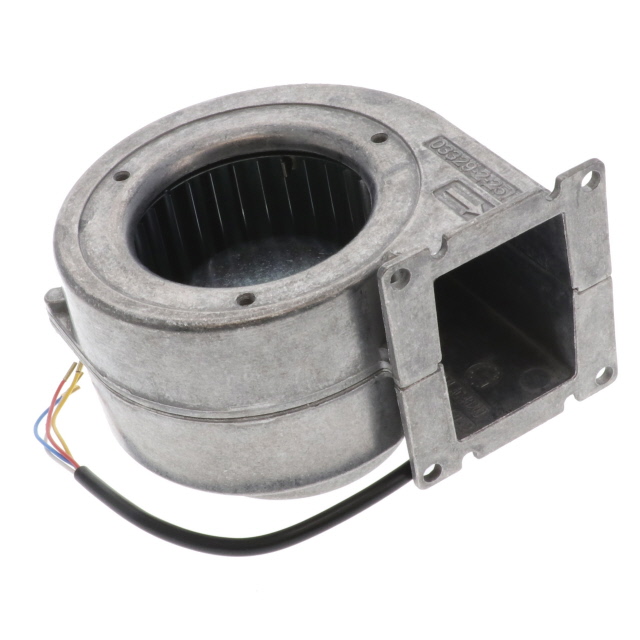

Specification	G1G085-AB05-01

Approval Agency	EAC
Bearing Type	Ball
Fan Type	Blower
Features	PWM Control, Speed Sensor (Tach)
Ingress Protection	IP22
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	14 W
RPM	2850 RPM
Size / Dimension Height	127.5 mm
Size / Dimension Length	117.5 mm
Size / Dimension Shape	Rectangular/Rounded
Termination	4 Wire Leads with Splice Terminals
Termination Leads Count	4
Termination Type	Wire Leads with Splice Terminals
Voltage - Rated	24 VAC
Voltage Range (Max)	28 V
Voltage Range (Min)	16 VDC

G1G085 Series

Part	Voltage Range (Max)	Voltage Range (Min)	Material - Blade	Material - Frame	Fan Type	Bearing Type	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Height	Ingress Protection	Power (Watts)	RPM	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Features
ebm-papst Inc. G1G085-AB05-01	28 V	16 VDC	Steel	Aluminum	Blower	Ball	EAC	-25 °C	60 °C	Rectangular/Rounded	117.5 mm	127.5 mm	IP22	14 W	2850 RPM	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	24 VAC	PWM Control Speed Sensor (Tach)
