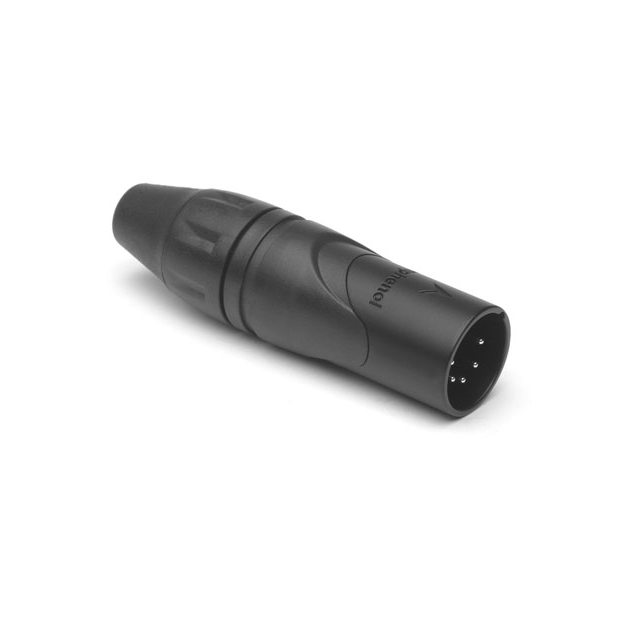

AX5MB BULK
ActiveAmphenol Sine Systems Corp
METAL XLR PLUG STR CORD 5 PIN BL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AX5MB BULK |
|---|---|
| Applications | Audio |
| Backshell Material, Plating | Polyphenylene Ether (PPE), Polystyrene (PS) |
| Cable Opening [Max] [diameter] | 7.98 mm |
| Cable Opening [Max] [diameter] | 0.314 in |
| Cable Opening [Min] [diameter] | 0.118 in |
| Cable Opening [Min] [diameter] | 3 mm |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Brass |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Latch Holder |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP40 |
| Insert Material | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | XLR |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 300 | $ 6.33 | |
Description
General part information
AX5MB Series
5 Position Circular Connector Receptacle, Male Pins Solder Cup
