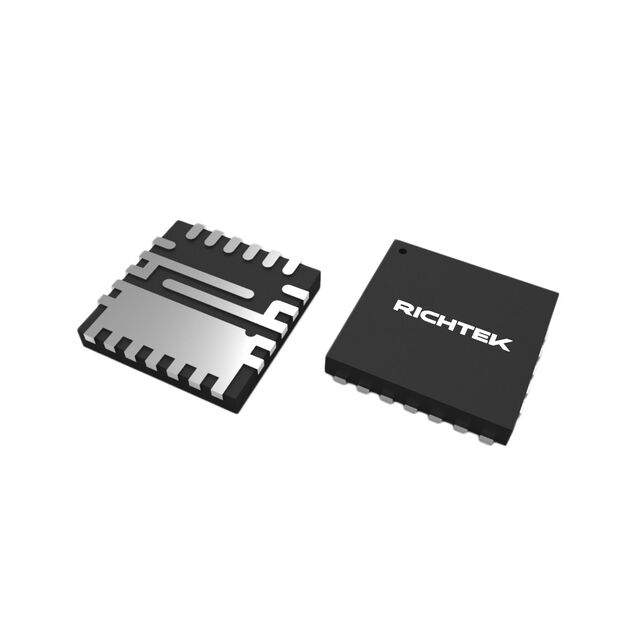

RT6310AGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 10A 23UQFN(FC)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT6310AGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 10A 23UQFN(FC)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT6310AGQUF |
|---|---|
| Current - Output | 10 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |
| Package / Case | 23-PowerUFQFN |
| Supplier Device Package | 23-UQFN (FC) (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 23 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.50 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.27 | |||
| 100 | $ 1.05 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.50 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.27 | |||
| 100 | $ 1.05 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.86 | |||
| Tape & Reel (TR) | 1500 | $ 0.68 | ||
| 3000 | $ 0.64 | |||
| 7500 | $ 0.60 | |||
| 10500 | $ 0.58 | |||
Description
General part information
RT6310 Series
Buck Switching Regulator IC Positive Programmable 0.6V 1 Output 10A 23-PowerUFQFN
