EM5223-72#

Active

Pomona Electronics

3 LUG TRIAX, BELDEN 9222 MTO BULK

Search across all available documentation for this part.

Active

Pomona Electronics

3 LUG TRIAX, BELDEN 9222 MTO BULK

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector	2nd Contact Gender	1st Contact Gender	1st Connector	Style	Overall Impedance	2nd Connector Mounting Type	Cable Type	Features	1st Connector Mounting Type	Color	Length	Length	Length
Pomona Electronics EM5223-144#	Triax Plug	Male	Male	Triax Plug	BNC 3 Lug Triax to BNC 3 Lug Triax	50 Ohms	Free Hanging (In-Line)	Belden 9222	Shielded	Free Hanging (In-Line)	Yellow
Pomona Electronics EM5223-72#	Triax Plug	Male	Male	Triax Plug	BNC 3 Lug Triax to BNC 3 Lug Triax	50 Ohms	Free Hanging (In-Line)	Belden 9222	Shielded	Free Hanging (In-Line)	Yellow	6 ft	72 in	1.8 m
Pomona Electronics EM5223-240#	Triax Plug	Male	Male	Triax Plug	BNC 3 Lug Triax to BNC 3 Lug Triax	50 Ohms	Free Hanging (In-Line)	Belden 9222	Shielded	Free Hanging (In-Line)	Yellow	20 ft	20 ft	6.1 m
Pomona Electronics EM5223-120#	Triax Plug	Male	Male	Triax Plug	BNC 3 Lug Triax to BNC 3 Lug Triax	50 Ohms	Free Hanging (In-Line)	Belden 9222	Shielded	Free Hanging (In-Line)	Yellow	10 '	10 ft	3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 151.99
		25	$ 149.59
Newark	Each	1	$ 175.99

General part information

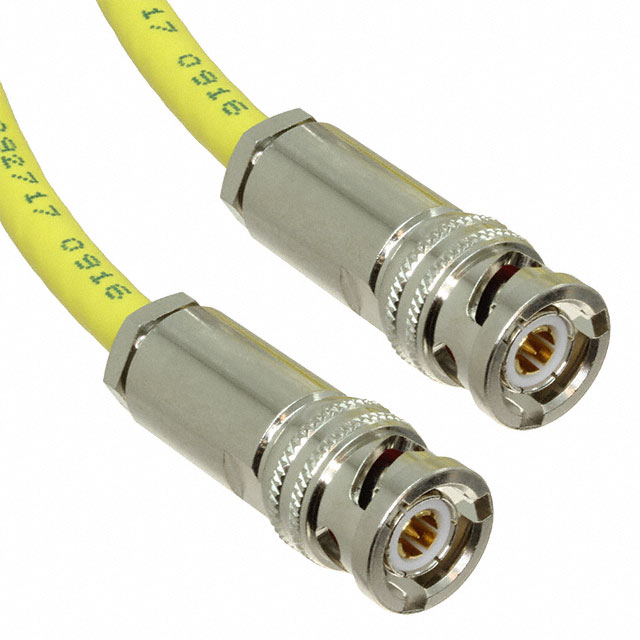

Cable Assembly Coaxial BNC 3 Lug Triax to BNC 3 Lug Triax Belden 9222 72.0" (1.8m) 6.0'
