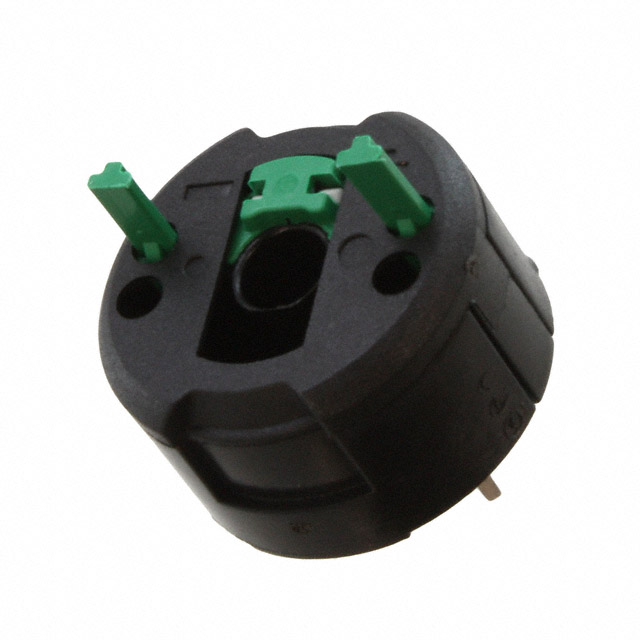

1.20.126.202/0000

Active

RAFI USA

CONTACT BLOCK SPST-NO 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK SPST-NO 3A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.20.126.202/0000	1.20.126 Series

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS	Rafix 22 FS
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	3 A, 120 VAC	0.1 - 120 VAC/DC
Requires	Switch Body	Switch Body
Termination Style	PC Pin	PC Pin

CONTACT BLOCK SPST-NO 0.1A 35V

Part	Termination Style	Circuit	Contact Rating @ Voltage	(Select First, Then Apply Filters) Compatible Series	Requires
RAFI USA 1.20.126.002/9000	PC Pin	SPST-NO	0.1 A, 35 VAC/DC	Rafix 22 FS	Switch Body
RAFI USA 1.20.126.202/0000	PC Pin	SPST-NO	3 A, 120 VAC	Rafix 22 FS	Switch Body

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 11.10

General part information

Configurable Contact Block SPST-NO 3A @ 120VAC
