73804W 0081000

Active

Belden Inc.

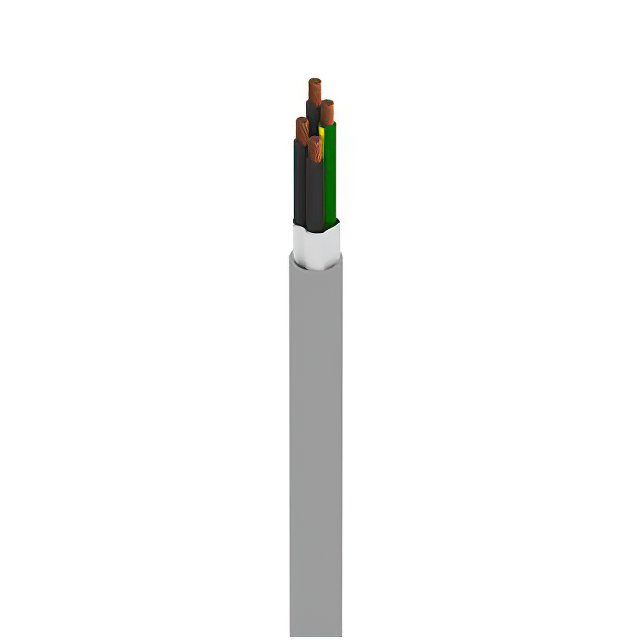

CABLE 4COND 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	73804W 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.296 in
Jacket (Insulation) Diameter [diameter]	7.52 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	18 AWG

Part	Ratings	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Features	Voltage	Wire Gauge	Conductor Material
Belden Inc. 73804W 0081000	UL Style 2587	4	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.296 in	7.52 mm	1000 ft	304.8 m	Gray	16	30 AWG	Multi-Conductor	Oil Resistant	600 V	18 AWG	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
