IRAUDAMP16

Active

Infineon Technologies

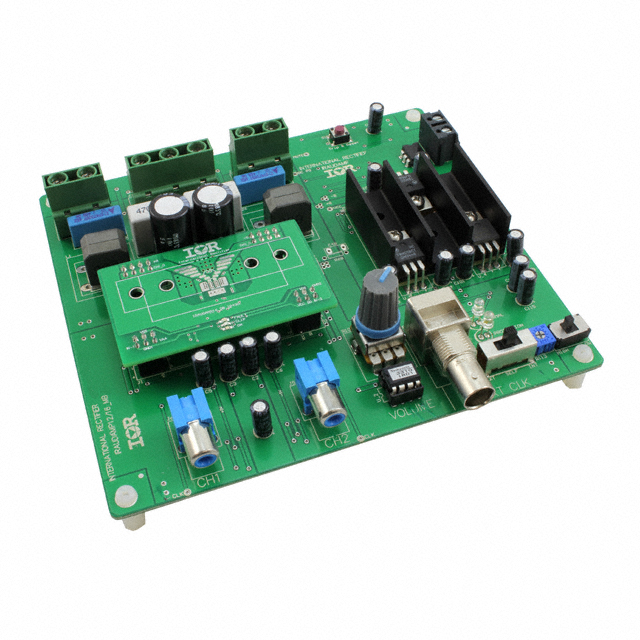

REFERENCE DESIGN BOARD - 70W/4 OHMS X 2 CHANNEL CLASS D AUDIO POWER AMPLIFIER FEATURING IR4302

Search across all available documentation for this part.

DocumentsIR43x2

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 70W/4 OHMS X 2 CHANNEL CLASS D AUDIO POWER AMPLIFIER FEATURING IR4302

DocumentsIR43x2

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP16

Board Type	Fully Populated
Max Output Power x Channels @ Load	70 W, 2 channels
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	IR4302
Voltage - Supply	13 V
Voltage - Supply [Max]	23 V

Part	Utilized IC / Part	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply	Output Type	Max Output Power x Channels @ Load	Board Type
Infineon Technologies IRAUDAMP16	IR4302	Board(s)	23 V	13 V	2-Channel (Stereo)	2 channels 70 W	Fully Populated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 279.00

General part information

IR4302 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
