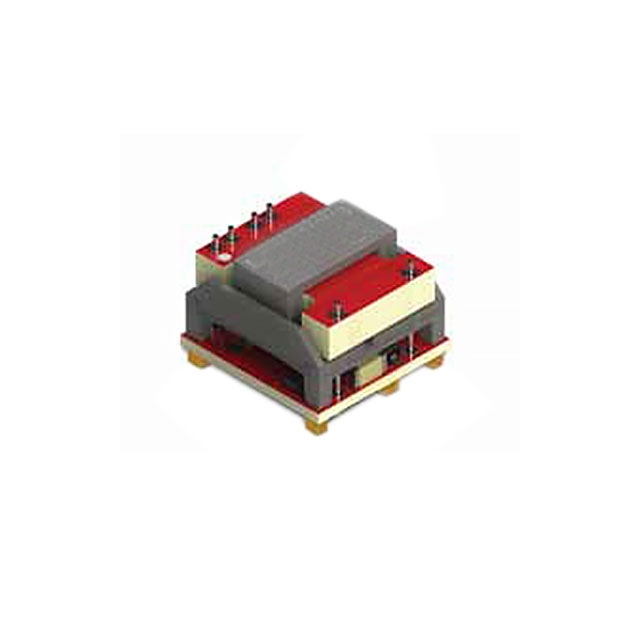

MTC1S2412MC-R7

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MODULE, 2:1, 1 W, 1 OUTPUT, 12 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MODULE, 2:1, 1 W, 1 OUTPUT, 12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 83mA 18V - 36V Input

Technical documentation and resources

Part	Package / Case	Package / Case	Voltage - Input (Min) [Min]	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Efficiency	Features	Current - Output (Max) [Max]	Voltage - Output 1
Murata Power Solutions Inc. MTC1S2405MC-R7	6-SMD Module	6 Leads	18 V	Surface Mount	ITE (Commercial), Medical	100 °C	-40 °C	1	36 V	Isolated Module	0.59 in	14.2 mm	11.2 mm	0.56 in	15 mm	0.44 "	3000 V	76.5 %	Remote On/Off, SCP	200 mA	5 V
Murata Power Solutions Inc. MTC1S2412MC-R7	6-SMD Module	6 Leads	18 V	Surface Mount	ITE (Commercial), Medical	100 °C	-40 °C	1	36 V	Isolated Module	0.59 in	14.2 mm	11.2 mm	0.56 in	15 mm	0.44 "	3000 V	77 %	Remote On/Off, SCP	83 mA	12 V
Murata Power Solutions Inc. MTC1S2403MC-R7	6-SMD Module	6 Leads	18 V	Surface Mount	ITE (Commercial), Medical	100 °C	-40 °C	1	36 V	Isolated Module	0.59 in	14.2 mm	11.2 mm	0.56 in	15 mm	0.44 "	3000 V	75.5 %	Remote On/Off, SCP	303 mA	3.3 V
