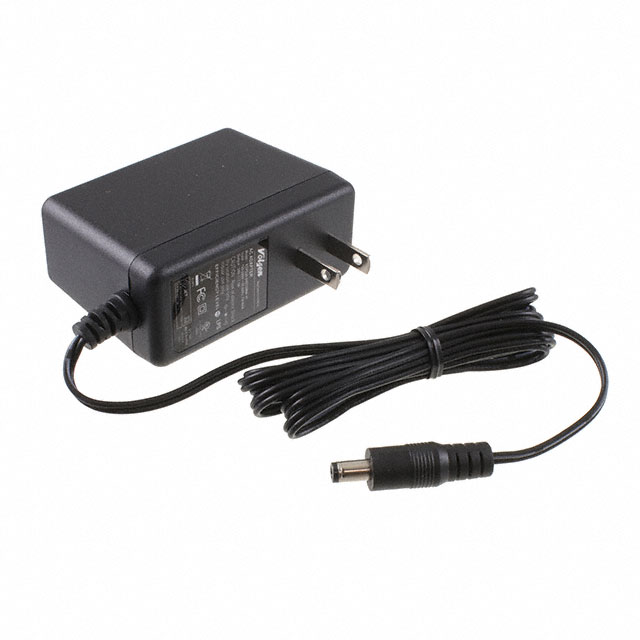

KTPS36-240150WA-VI-P1

Active

Volgen + Furuno

AC/DC WALL MOUNT ADAPTER 24V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KTPS36-240150WA-VI-P1

Active

Volgen + Furuno

AC/DC WALL MOUNT ADAPTER 24V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.50
		5	$ 14.11
		10	$ 13.32
		25	$ 12.54
		50	$ 11.76
		100	$ 10.97
		250	$ 10.58
		500	$ 10.42

Description

General part information

KTPS36 Series

24V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTPS36-240150WA-VI-P1	KTPS36 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, cUL	IEC, RCM, UL, cUL, CB, CE, GS, PSE
Cord Length	1.5 m	1 - 1.5 m
Cord Length	59 in	39.4 - 59 in
Current - Output (Max) [Max]	1.5 A	1.5 - 750 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II), Desktop (Class II), Desktop (Class I)
Input Connector	NEMA 1-15P	NEMA 1-15P, Multi-Blade (Included), IEC 320-C6
Input Type	Fixed Blade	Fixed Blade, Multi-Blade (Included), Cord, Multi-Blade
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	36 W	25 - 36 W
Region Utilized	North America	North America, International
Size / Dimension [x]	72 mm	72 - 115 mm
Size / Dimension [x]	2.83 "	2.83 - 4.53 "
Size / Dimension [y]	34 mm	34 - 53 mm
Size / Dimension [y]	1.34 in	1.34 - 2.09 in
Size / Dimension [z]	2.05 in	1.3 - 2.6 in
Size / Dimension [z]	52 mm	33 - 66 mm
Standard Number	-	62368-1
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output	24 V	5 - 48 V
Weight	-	160 g
Weight	-	0.35 lb

KTPS36 Series

AC/DC WALL MOUNT ADAPTER 5V 25W

Part	Operating Temperature [Max]	Approval Agency	Applications	Form	Input Type	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Voltage - Output	Polarization	Standard Number	Efficiency	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Weight	Weight
Volgen + Furuno KTPS36-050500WA-VI-P1	40 °C	IEC	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade	1.5 m	59 in	240 VAC	100 VAC	North America	5 V	Positive Center	62368-1	Level VI	NEMA 1-15P	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	5 A	25 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-480075MP-VI-P1	40 °C	CB, CE, cUL, GS, PSE, RCM, UL	ITE (Commercial)	Wall Mount (Class II)	Multi-Blade (Included)	1 m	39.4 "	240 VAC	100 VAC	International	48 V	Positive Center		Level VI	Multi-Blade (Included)	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	750 mA	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-150240DT-2P-VI-P12	40 °C	CB, CE, cUL, GS, PSE, UL	ITE (Commercial)	Desktop (Class II)	Cord	1.5 m	59 in	240 VAC	100 VAC	International	15 VDC	Positive Center		Level VI	IEC 320-C6	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	2.4 A	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-240150MP-VI-P2-NA	40 °C	CB, CE, cUL, GS, PSE, RCM, UL	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade, Multi-Blade	1 m	39.4 "	240 VAC	100 VAC	North America	24 V	Positive Center		Level VI	NEMA 1-15P	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	1.5 A	36 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	160 g	0.35 lb
Volgen + Furuno KTPS36-050500MP-VI-P2R	40 °C	IEC	ITE (Commercial)	Wall Mount (Class II)	Multi-Blade (Included)	1 m	39.4 "	240 VAC	100 VAC	International	5 V	Positive Center	62368-1	Level VI	Multi-Blade (Included)	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	5 A	25 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-120300MP-VI-P2R	40 °C	IEC	ITE (Commercial)	Wall Mount (Class II)	Multi-Blade (Included)	1 m	39.4 "	240 VAC	100 VAC	International	12 V	Positive Center	62368-1	Level VI	Multi-Blade (Included)	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	3 A	36 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-0940DT-3P-VI-C-P1	40 °C	IEC	ITE (Commercial)	Desktop (Class I)	Cord	1.5 m	59 in	240 VAC	100 VAC	International	9 V	Positive Center	62368-1	Level VI	IEC 320-C6	53 mm	115 mm	4.53 "	1.5 "	2.09 "	38 mm	4 A	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-150240WA-VI-P1	40 °C	cUL, UL	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade	1.5 m	59 in	240 VAC	100 VAC	North America	15 VDC	Positive Center		Level VI	NEMA 1-15P	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	2.4 A	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-090334DT-2P-VI-P1	40 °C	IEC	ITE (Commercial)	Desktop (Class II)	Cord	1.5 m	59 in	240 VAC	100 VAC	International	9 V	Positive Center	62368-1	Level VI	IEC 320-C6	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	3.34 A	30 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-120300MP-VI-P2-NA	40 °C	CB, CE, cUL, GS, PSE, RCM, UL	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade, Multi-Blade	1 m	39.4 "	240 VAC	100 VAC	International	12 V	Positive Center		Level VI	NEMA 1-15P	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	3 A	36 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	160 g	0.35 lb
