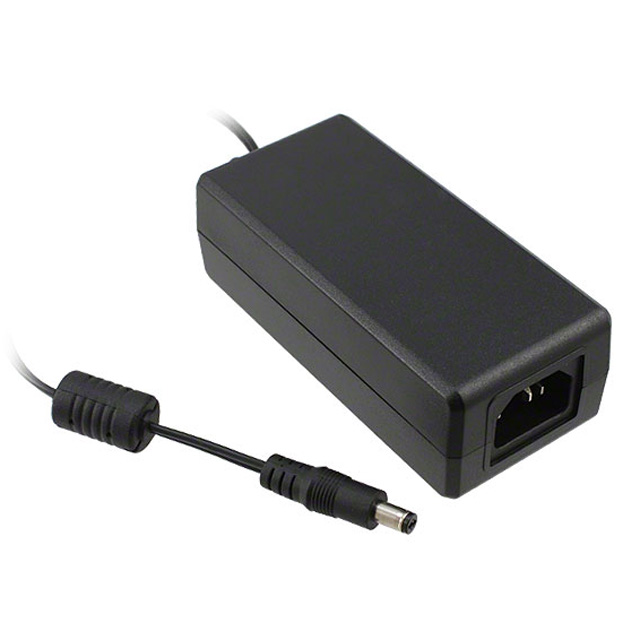

KTPS36-0940DT-3P-VI-C-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KTPS36-0940DT-3P-VI-C-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KTPS36-0940DT-3P-VI-C-P1	KTPS36 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC	IEC, RCM, UL, cUL, CB, CE, GS, PSE
Cord Length	1.5 m	1 - 1.5 m
Cord Length	59 in	39.4 - 59 in
Current - Output (Max) [Max]	4 A	1.5 - 750 A
Efficiency	Level VI	Level VI
Form	Desktop (Class I)	Wall Mount (Class II), Desktop (Class II), Desktop (Class I)
Input Connector	IEC 320-C6	NEMA 1-15P, Multi-Blade (Included), IEC 320-C6
Input Type	Cord	Fixed Blade, Multi-Blade (Included), Cord, Multi-Blade
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	36 W	25 - 36 W
Region Utilized	International	North America, International
Size / Dimension [x]	4.53 "	2.83 - 4.53 "
Size / Dimension [x]	115 mm	72 - 115 mm
Size / Dimension [y]	2.09 "	1.34 - 2.09 in
Size / Dimension [y]	53 mm	34 - 53 mm
Size / Dimension [z]	38 mm	33 - 66 mm
Size / Dimension [z]	1.5 "	1.3 - 2.6 in
Standard Number	62368-1	62368-1
Voltage - Input [Max]	240 VAC	240 VAC
Voltage - Input [Min]	100 VAC	100 VAC
Voltage - Output	9 V	5 - 48 V
Weight	-	160 g
Weight	-	0.35 lb

KTPS36 Series

AC/DC WALL MOUNT ADAPTER 5V 25W

Part	Operating Temperature [Max]	Approval Agency	Applications	Form	Input Type	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Voltage - Output	Polarization	Standard Number	Efficiency	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Weight	Weight
Volgen + Furuno KTPS36-050500WA-VI-P1	40 °C	IEC	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade	1.5 m	59 in	240 VAC	100 VAC	North America	5 V	Positive Center	62368-1	Level VI	NEMA 1-15P	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	5 A	25 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-480075MP-VI-P1	40 °C	CB, CE, cUL, GS, PSE, RCM, UL	ITE (Commercial)	Wall Mount (Class II)	Multi-Blade (Included)	1 m	39.4 "	240 VAC	100 VAC	International	48 V	Positive Center		Level VI	Multi-Blade (Included)	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	750 mA	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-150240DT-2P-VI-P12	40 °C	CB, CE, cUL, GS, PSE, UL	ITE (Commercial)	Desktop (Class II)	Cord	1.5 m	59 in	240 VAC	100 VAC	International	15 VDC	Positive Center		Level VI	IEC 320-C6	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	2.4 A	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-240150MP-VI-P2-NA	40 °C	CB, CE, cUL, GS, PSE, RCM, UL	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade, Multi-Blade	1 m	39.4 "	240 VAC	100 VAC	North America	24 V	Positive Center		Level VI	NEMA 1-15P	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	1.5 A	36 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	160 g	0.35 lb
Volgen + Furuno KTPS36-050500MP-VI-P2R	40 °C	IEC	ITE (Commercial)	Wall Mount (Class II)	Multi-Blade (Included)	1 m	39.4 "	240 VAC	100 VAC	International	5 V	Positive Center	62368-1	Level VI	Multi-Blade (Included)	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	5 A	25 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-120300MP-VI-P2R	40 °C	IEC	ITE (Commercial)	Wall Mount (Class II)	Multi-Blade (Included)	1 m	39.4 "	240 VAC	100 VAC	International	12 V	Positive Center	62368-1	Level VI	Multi-Blade (Included)	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	3 A	36 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-0940DT-3P-VI-C-P1	40 °C	IEC	ITE (Commercial)	Desktop (Class I)	Cord	1.5 m	59 in	240 VAC	100 VAC	International	9 V	Positive Center	62368-1	Level VI	IEC 320-C6	53 mm	115 mm	4.53 "	1.5 "	2.09 "	38 mm	4 A	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-150240WA-VI-P1	40 °C	cUL, UL	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade	1.5 m	59 in	240 VAC	100 VAC	North America	15 VDC	Positive Center		Level VI	NEMA 1-15P	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	2.4 A	36 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-090334DT-2P-VI-P1	40 °C	IEC	ITE (Commercial)	Desktop (Class II)	Cord	1.5 m	59 in	240 VAC	100 VAC	International	9 V	Positive Center	62368-1	Level VI	IEC 320-C6	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	3.34 A	30 W	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
Volgen + Furuno KTPS36-120300MP-VI-P2-NA	40 °C	CB, CE, cUL, GS, PSE, RCM, UL	ITE (Commercial)	Wall Mount (Class II)	Fixed Blade, Multi-Blade	1 m	39.4 "	240 VAC	100 VAC	International	12 V	Positive Center		Level VI	NEMA 1-15P	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	3 A	36 W	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	160 g	0.35 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.11
		5	$ 20.78
		10	$ 20.46
		25	$ 19.48
		50	$ 18.83
		100	$ 17.53
		250	$ 17.27

Description

General part information

KTPS36 Series

9V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
