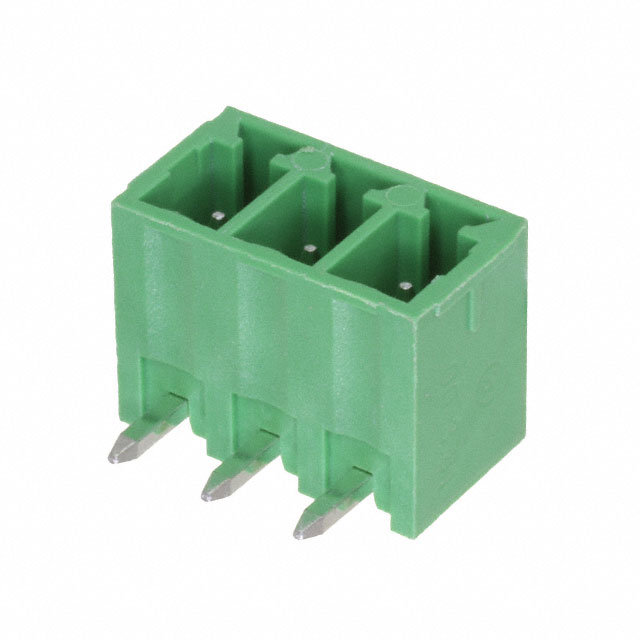

EB3-03-B

Active

Adam Tech

EURO BLOCK 3P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 3P

Technical Specifications

Parameters and characteristics for this part

Specification	EB3-03-B

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	10 A
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height	0.283 "
Insulation Height	7.19 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Insulation Height	Insulation Height	Type	Color	Pitch [x]	Pitch [x]	Termination Style	Current - UL	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Mounting Type	Contact Material	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Contact Mating Finish	Voltage - UL	Header Orientation	Number of Levels	Housing Material
Adam Tech EB3-03-B	0.283 "	7.19 mm	Header Male Pins Shrouded (4 Side)	Green	0.15 in	3.81 mm	Solder	10 A	-40 °C	115 °C	3	Through Hole	Copper Alloy	3.5 mm	0.138 in	UL94 V-0	Tin	300 V	90° Right Angle	1	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
