R125272000

Active

Radiall USA, Inc.

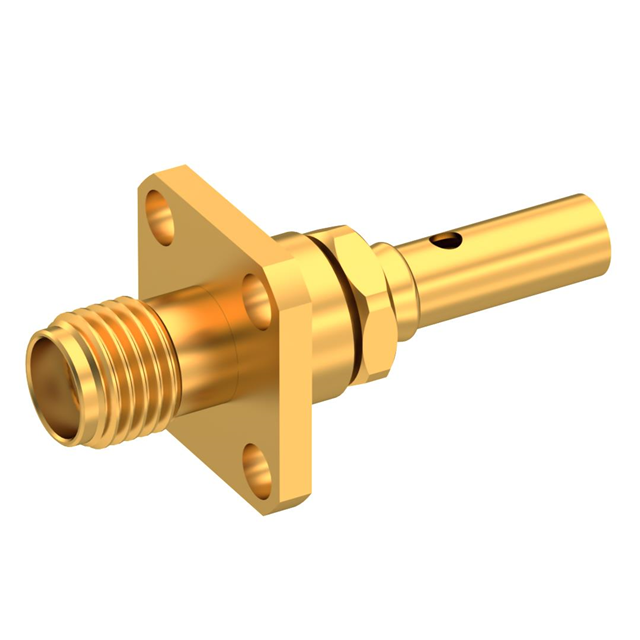

SMA / STRAIGHT SQUARE FLANGE JAC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT SQUARE FLANGE JAC

Technical Specifications

Parameters and characteristics for this part

Specification	R125272000

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Center Contact Material	Mating Cycles	Connector Type	Voltage Rating	Center Contact Plating	Contact Termination	Dielectric Material	Impedance	Body Finish	Number of Ports	Body Material	Frequency - Max [Max]	Shield Termination	Mounting Feature	Cable Group	Connector Style
Radiall USA, Inc. R125272000	-65 ░C	165 °C	Gold	Beryllium Copper	500	Female Socket Jack	500 V	Gold	Crimp Solder	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	1	Stainless Steel	12.4 GHz	Clamp	Flange	316 RG-174	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Crimp or Solder
