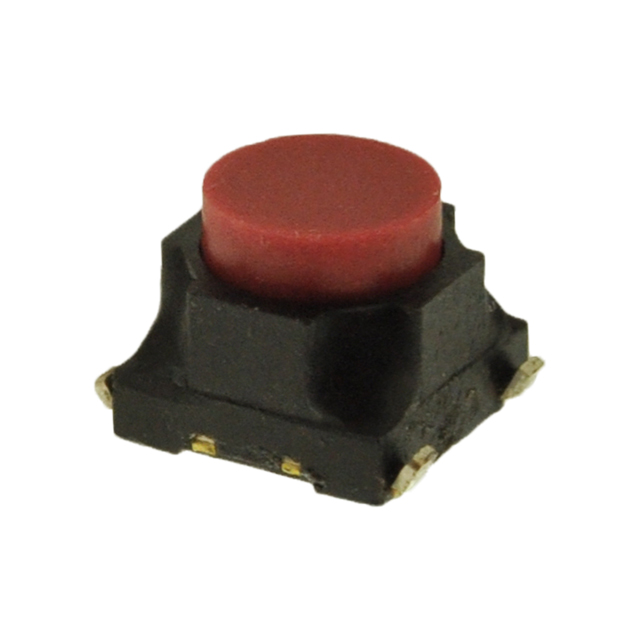

TL9100AF200Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL9100AF200Q	TL9100 Series

Actuator Height off PCB, Vertical	5 mm	5 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Round Button	Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	100000 Cycles	30000 - 100000 Steps
Mounting Type	Surface Mount	Surface Mount
Operating Force	200 gf	200 - 350 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6 mm	6 mm
Outline [y]	6 mm	6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1.3 mm	1.3 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Height off PCB, Vertical	Illumination	Outline [y]	Outline [x]	Operating Force	Switch Function	Contact Rating @ Voltage	Actuator Type	Termination Style	Actuator Orientation	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Circuit	Mounting Type
E-Switch TL9100AF350Q	5 mm	Non-Illuminated	6 mm	6 mm	350 gf	Off-Mom	0.05 A, 12 VDC	Round Button	Gull Wing	Top Actuated	30000 Steps	85 °C	-40 °C	1.3 mm	SPST-NO	Surface Mount
E-Switch TL9100AF200Q	5 mm	Non-Illuminated	6 mm	6 mm	200 gf	Off-Mom	0.05 A, 12 VDC	Round Button	Gull Wing	Top Actuated	100000 Cycles	85 °C	-40 °C	1.3 mm	SPST-NO	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
