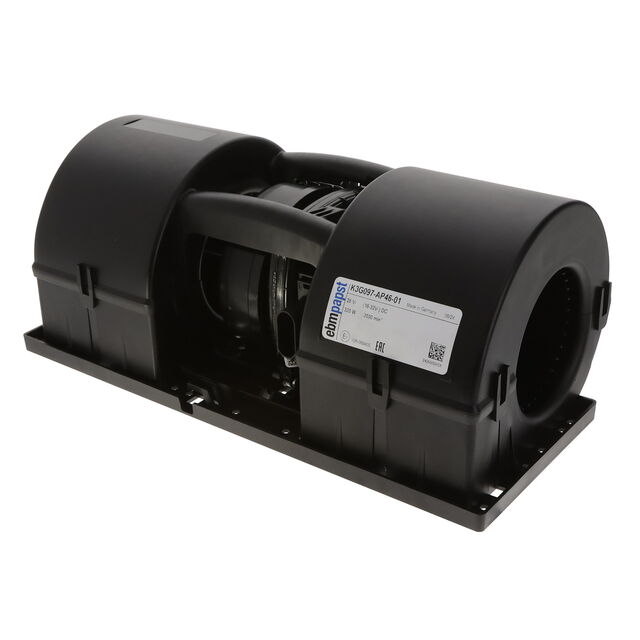

K3G097-AP46-01

Active

ebm-papst Inc.

BLOWERS & CENTRIFUGAL FANS EC CENTRIFUGAL FAN COMBO, 351X170X139.3MM, 26VDC, 705CFM, 320W, 3500RPM, BALL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K3G097-AP46-01

Active

ebm-papst Inc.

BLOWERS & CENTRIFUGAL FANS EC CENTRIFUGAL FAN COMBO, 351X170X139.3MM, 26VDC, 705CFM, 320W, 3500RPM, BALL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K3G097-AP46-01

Air Flow	8.25 m³/min
Air Flow	294.5 CFM
Approval Agency	EAC
Bearing Type	Ball
Current Rating (Amps)	12.2 A
Fan Type	Blower, Centrifugal (Dual)
Features	Locked Rotor Protection, Thermal Overload Protector (TOP), PWM Control
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Polypropylene (PP)
Noise	70 dB(A)
Power (Watts)	320 W
RPM	3500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	139.5 mm
Size / Dimension [y]	170.5 mm
Static Pressure	2.377 in H2O
Static Pressure	592 Pa
Termination	4 Position Rectangular Connector
Voltage - Rated	26 VDC
Voltage Range [Max]	32 VDC
Voltage Range [Min]	16 VDC
Width [x]	351 mm

K3G097 Series

Part	Width [x]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Features	Fan Type	Material - Frame	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Voltage - Rated	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Termination	RPM	Weight	Weight	Width [y]	Noise	Static Pressure	Static Pressure
ebm-papst Inc. K3G097-AK34-65	351 mm	394 W	170.5 mm	139.5 mm	Rectangular/Rounded	Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)	Blower Centrifugal (Dual)	Polypropylene (PP)	Ball	70 °C	70 °C	-40 °C	-40 °C	11.63 mł/min	415.2 CFM	26 VDC	Nylon Polyamide (PA)	15.2 A	16 VDC	32 VDC	EAC	6 Position Rectangular Connector	3830 RPM
ebm-papst Inc. K3G097-BP46-01			163.5 mm	144.3 mm	Rectangular/Rounded	Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)	Blower Centrifugal (Dual)	Polypropylene (PP)	Ball	85 °C	85 °C	-40 °C	-40 °C	18.54 mł/min	662.1 CFM	26 VDC	Nylon Polyamide (PA)	11.8 A	16 VDC	32 VDC	EAC		3600 RPM	2 kg	4.5 lbs	335 mm	79 dB(A)
ebm-papst Inc. K3G097-AK68-85	351 mm	690 W	170.5 mm	139.5 mm	Rectangular/Rounded	Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)	Blower Centrifugal (Dual)	Nylon Polyamide (PA)	Ball	60 °C	60 °C	-40 °C	-40 °C	12.37 m³/min	441.8 CFM	26 VDC	Nylon Polyamide (PA)	26.5 A	16 VDC	32 VDC	EAC	4 Position Rectangular Connector	4600 RPM				75 dB(A)
ebm-papst Inc. K3G097-AP46-01	351 mm	320 W	170.5 mm	139.5 mm	Rectangular/Rounded	Locked Rotor Protection PWM Control Thermal Overload Protector (TOP)	Blower Centrifugal (Dual)	Polypropylene (PP)	Ball					8.25 m³/min	294.5 CFM	26 VDC	Nylon Polyamide (PA)	12.2 A	16 VDC	32 VDC	EAC	4 Position Rectangular Connector	3500 RPM				70 dB(A)	2.377 in H2O	592 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 385.62
		10	$ 311.44
Sager	N/A	1	$ 345.66
		2	$ 335.79
		5	$ 326.46
		10	$ 317.64
		20	$ 309.28
		50	$ 284.10
		75	$ 277.00

Description

General part information

K3G097 Series

Fan Blower, Centrifugal (Dual) 26VDC Rectangular/Rounded - 139.5mm L x 170.5mm H Ball 294.5 CFM (8.25m³/min) 4 Position Rectangular Connector
