VP3203N8-G

Active
Microchip Technology

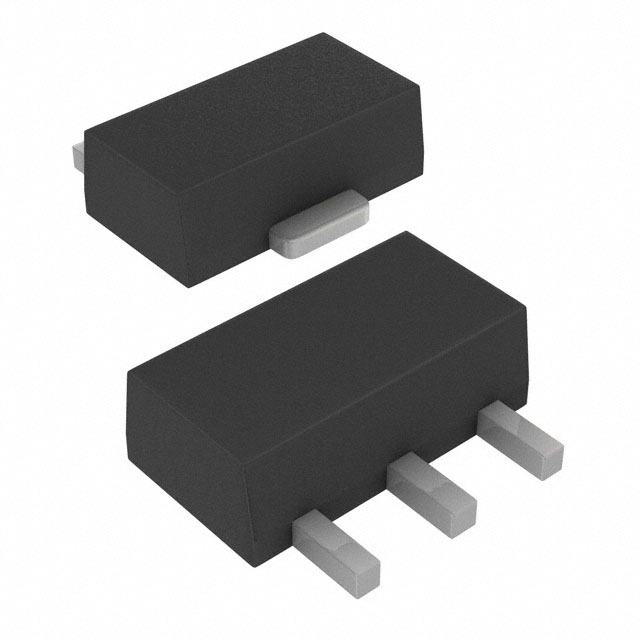

MOSFET P-CH 30V 1.1A TO243AA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
VP3203N8-G - C04-029 MB

VP3203N8-G

Active
Microchip Technology

MOSFET P-CH 30V 1.1A TO243AA

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationVP3203N8-GVP3203 Series
--
Current - Continuous Drain (Id) @ 25°C1.1 A1.1 A
Drain to Source Voltage (Vdss)30 V30 V
Drive Voltage (Max Rds On, Min Rds On)10 V, 4.5 V4.5 - 10 V
FET TypeP-ChannelP-Channel
Input Capacitance (Ciss) (Max) @ Vds [Max]300 pF300 pF
Mounting TypeSurface MountSurface Mount
Operating Temperature [Max]150 °C150 °C
Operating Temperature [Min]-55 °C-55 °C
Package / CaseTO-243AATO-243AA
Rds On (Max) @ Id, Vgs600 mOhm600 mOhm
Supplier Device PackageTO-243AA (SOT-89)TO-243AA (SOT-89)
TechnologyMOSFET (Metal Oxide)MOSFET (Metal Oxide)
Vgs (Max)20 V20 V
Vgs(th) (Max) @ Id3.5 V3.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.00
25$ 1.66
100$ 1.51
Digi-Reel® 1$ 2.00
25$ 1.66
100$ 1.51
Tape & Reel (TR) 2000$ 1.51

VP3203 Series

MOSFET, P-Channel Enhancement-Mode, -30V, 0.6 Ohm

PartRds On (Max) @ Id, VgsSupplier Device PackageVgs(th) (Max) @ IdDrive Voltage (Max Rds On, Min Rds On)Input Capacitance (Ciss) (Max) @ Vds [Max]Vgs (Max)Mounting TypeFET TypeDrain to Source Voltage (Vdss)TechnologyOperating Temperature [Min]Operating Temperature [Max]Package / CaseCurrent - Continuous Drain (Id) @ 25°C
Microchip Technology
VP3203N3-G
Microchip Technology
VP3203N3-G
Microchip Technology
VP3203N8-G
600 mOhm
TO-243AA (SOT-89)
3.5 V
4.5 V, 10 V
300 pF
20 V
Surface Mount
P-Channel
30 V
MOSFET (Metal Oxide)
-55 °C
150 °C
TO-243AA
1.1 A

Description

General part information

VP3203 Series

This low threshold, enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and thermally-induced secondary breakdown.

Vertical DMOS FETs are ideally suited to a wide range of switching and amplifying applications where very low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds are desired.

Documents

Technical documentation and resources
