EN3P4FPX

Active

Switchcraft Inc.

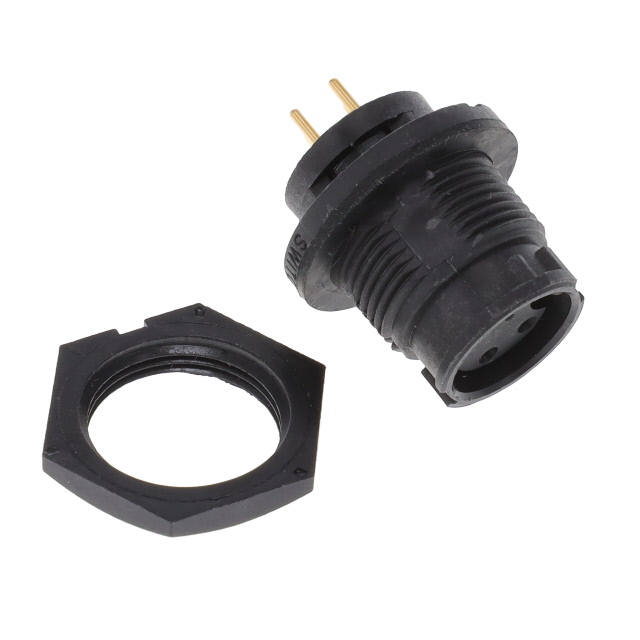

CONN RCPT FMALE 4POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P4FPX

Active

Switchcraft Inc.

CONN RCPT FMALE 4POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P4FPX	EN3P4F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	5 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	4	4
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Crimp
Voltage Rating	250 VAC	250 VAC

EN3P4F Series

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Connector Type	Primary Material	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Fastening Type	Insert Material	Termination	Shielding	Ingress Protection	Applications	Contact Material	Mounting Feature	Orientation	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Color	Voltage Rating
Switchcraft Inc. EN3P4FPX	Receptacle, Female Sockets	Plastic	Panel Mount, Through Hole	7.5 A	UL94 V-0	Bayonet Lock	Elastomer	Solder	Unshielded	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Bulkhead - Front Side Nut	Keyed	4	65 °C	-40 °C	Gold	Black	250 VAC
Switchcraft Inc. EN3P4FCKX	Receptacle, Female Sockets	Plastic		7.5 A	UL94 V-0	Bayonet Lock	Elastomer	Crimp	Unshielded	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Bulkhead - Front Side Nut	Keyed	4	65 °C	-40 °C	Gold	Black	250 VAC
Switchcraft Inc. EN3P4FX	Receptacle, Female Sockets	Plastic		7.5 A	UL94 V-0	Bayonet Lock	Elastomer		Unshielded	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Bulkhead - Front Side Nut	Keyed	4	65 °C	-40 °C	Gold	Black	250 VAC
Switchcraft Inc. EN3P4FCX	Receptacle, Female Sockets	Plastic		7.5 A	UL94 V-0	Bayonet Lock	Elastomer	Crimp	Unshielded	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Bulkhead - Front Side Nut	Keyed	4	65 °C	-40 °C	Gold	Black	250 VAC
Switchcraft Inc. EN3P4FKX	Receptacle, Female Sockets	Plastic		7.5 A	UL94 V-0	Bayonet Lock	Elastomer		Unshielded	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Bulkhead - Front Side Nut	Keyed	4	65 °C	-40 °C	Gold	Black	250 VAC
Switchcraft Inc. EN3P4FRAPCX	Receptacle, Female Sockets	Plastic	Panel Mount, Right Angle, Through Hole	5 A	UL94 V-0	Bayonet Lock	Elastomer	Solder	Unshielded	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Bulkhead - Front Side Nut	Keyed	4	65 °C	-40 °C	Gold	Black	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.55
		10	$ 12.01
		100	$ 10.47
		1000	$ 8.19

Description

General part information

EN3P4F Series

4 Position Circular Connector Receptacle, Female Sockets Solder
