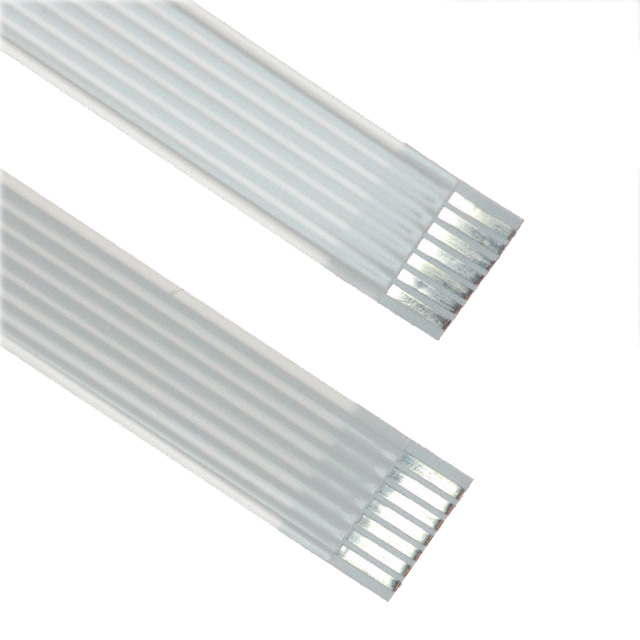

100R7-127B

Active

Parlex USA LLC

CABLE FFC/FPC 7POS 1MM 5"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 7POS 1MM 5"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.43

General part information

7 Position FFC, FPC Cable 0.039" (1.00mm) 5.000" (127.00mm)

Technical documentation and resources

Specification	100R7-127B	100R7 Series

Cable Type	FPC, FFC	FPC, FFC
Length	5 in	4 - 18 in
Length	127 mm	101.6 - 457.2 mm
Length	-	5.984 - 7.992 in
Length	-	152 - 203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	7	7
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Length [x]	Length [x]	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Number of Conductors	Length	Length
Parlex USA LLC 100R7-152B	Backers on Both Sides, Top on Both Sides	5.984 in	152 mm	0.039 in	1 mm	0.14 in	3.56 mm	FFC, FPC	7
Parlex USA LLC 100R7-203B	Backers on Both Sides, Top on Both Sides	7.992 in	203 mm	0.039 in	1 mm	0.14 in	3.56 mm	FFC, FPC	7
Parlex USA LLC 100R7-102B	Backers on Both Sides, Top on Both Sides			0.039 in	1 mm	0.14 in	3.56 mm	FFC, FPC	7	4 in	101.6 mm
Parlex USA LLC 100R7-127B	Backers on Both Sides, Top on Both Sides			0.039 in	1 mm	0.14 in	3.56 mm	FFC, FPC	7	5 in	127 mm
Parlex USA LLC 100R7-457B	Backers on Both Sides, Top on Both Sides			0.039 in	1 mm	0.14 in	3.56 mm	FFC, FPC	7	18 "	457.2 mm
