MS3112E18-32P

Active

ITT Cannon, LLC

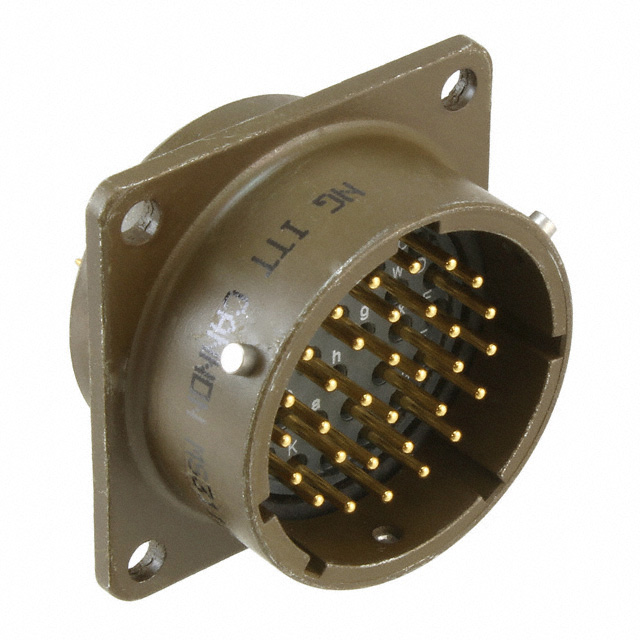

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 32 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MS3112E18-32P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 32 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E18-32P

Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Voltage Rating	600 VAC, 850 V

MS3112E18 Series

Part	Shell Finish	Mounting Feature	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Voltage Rating	Connector Type	Shell Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Fastening Type	Color	Current Rating (Amps)
ITT Cannon, LLC MS3112E18-32S	Olive Drab Cadmium	Flange	Environment Resistant	32	18	600 VAC 850 V	Receptacle Female Sockets	Aluminum Alloy	Gold	1.27 µm	50 µin	N	-55 °C	125 °C	Metal	Bayonet Lock	Olive Drab	7.5 A
ITT Cannon, LLC MS3112E18-32P	Olive Drab Cadmium	Flange	Environment Resistant	32	18	600 VAC 850 V	Male Pins Receptacle	Aluminum Alloy	Gold	1.27 µm	50 µin	N	-55 °C	125 °C	Metal	Bayonet Lock	Olive Drab	7.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.26
		1	$ 33.79
		10	$ 37.36
		25	$ 33.89
		50	$ 31.60
		100	$ 27.96
		250	$ 26.04

Description

General part information

MS3112E18 Series

The MS3112E18-32P from ITT Cannon is MIL-DTL-26482 series I box mount receptacle with 32 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
