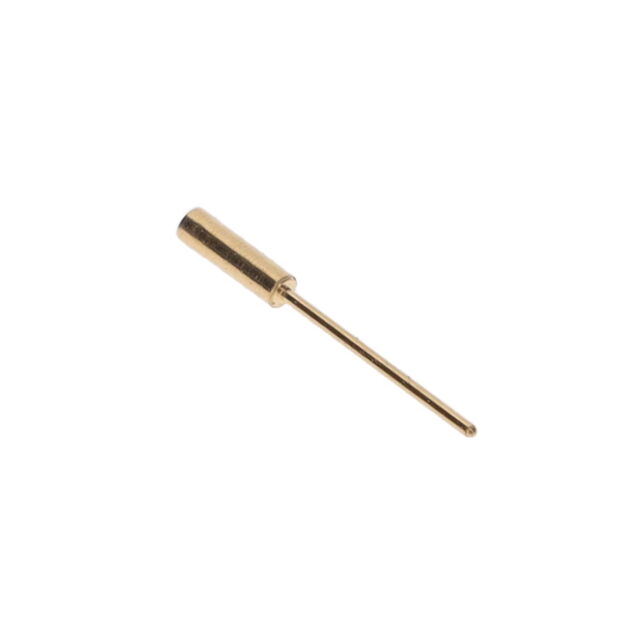

0464-1-15-15-10-14-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0464-1-15-15-10-14-04-0

Accepts Pin Diameter [Max]	0.017 in
Accepts Pin Diameter [Max]	0.43 mm
Accepts Pin Diameter [Min]	0.3 mm
Accepts Pin Diameter [Min]	0.012 in
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.037 "
Flange Diameter [diameter]	0.94 mm
Length - Overall	9.53 mm
Length - Overall [x]	0.375 "
Mounting Hole Diameter [diameter]	0.016 in
Mounting Hole Diameter [diameter]	0.41 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.028 in
Pin Hole Diameter [diameter]	0.71 mm
Socket Depth	2.54 mm
Socket Depth	0.1 "
Tail Diameter [diameter]	0.014 in
Tail Diameter [diameter]	0.36 mm
Tail Type	Standard Tail
Termination	Solder

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall [x]	Length - Overall	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0464-1-15-01-10-14-04-0	Gold	-55 °C	125 °C	2.54 mm	0.1 "	0.017 in	0.3 mm	0.43 mm	0.012 in	Solder	0.037 "	0.94 mm	Standard Tail	10 Áin	0.25 Ám	Beryllium Copper	0.016 in	0.41 mm	0.014 in	0.36 mm	0.375 "	9.53 mm	0.028 in	0.71 mm
Mill-Max Manufacturing Corp. 0464-1-15-15-10-27-04-0	Gold	-55 °C	125 °C	2.54 mm	0.1 "	0.017 in	0.3 mm	0.43 mm	0.012 in	Solder	0.037 "	0.94 mm	Standard Tail	30 Áin	0.76 Ám	Beryllium Copper	0.016 in	0.41 mm	0.014 in	0.36 mm	0.375 "	9.53 mm	0.028 in	0.71 mm
Mill-Max Manufacturing Corp. 0464-1-15-80-10-27-04-0	Gold	-55 °C	125 °C	2.54 mm	0.1 "	0.017 in	0.3 mm	0.43 mm	0.012 in	Solder	0.037 "	0.94 mm	Standard Tail	30 Áin	0.76 Ám	Beryllium Copper	0.016 in	0.41 mm	0.014 in	0.36 mm	0.375 "	9.53 mm	0.028 in	0.71 mm
Mill-Max Manufacturing Corp. 0464-1-15-15-10-14-04-0	Gold	-55 °C	125 °C	2.54 mm	0.1 "	0.017 in	0.3 mm	0.43 mm	0.012 in	Solder	0.037 "	0.94 mm	Standard Tail	10 Áin	0.25 Ám	Beryllium Copper	0.016 in	0.41 mm	0.014 in	0.36 mm	0.375 "	9.53 mm	0.028 in	0.71 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) Standard Tail Solder
