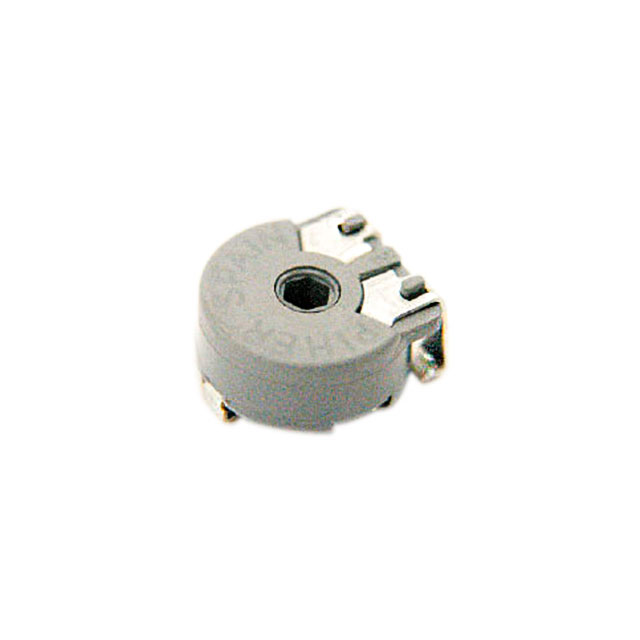

Specification	PS10MV50-503A3030-PM

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	1 turns
Power (Watts)	150 mW
Resistance	50 kOhm
Resistive Material	Carbon
Size / Dimension Diameter	0.406 in
Size / Dimension Shape	Round
Temperature Coefficient	1000 ppm/°C
Temperature Coefficient (Highest)	1000 ppm/°C
Temperature Coefficient (Lowest)	-1000 ppm/°C
Termination Style	J Lead
Tolerance	30 %

PS10MV50 Series

Part	Tolerance	Adjustment Type	Temperature Coefficient (Highest)	Temperature Coefficient	Temperature Coefficient (Lowest)	Resistive Material	Number of Turns	Termination Style	Size / Dimension Diameter	Size / Dimension Shape	Resistance	Power (Watts)	Mounting Type
Amphenol Piher Sensing Systems PS10MV50-503A3030	30 %	Top Adjustment	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	Carbon	1 turns	J Lead	0.406 in	Round	50 kOhm	150 mW	Surface Mount
Amphenol Piher Sensing Systems PS10MV50-503A3030-PM	30 %	Top Adjustment	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	Carbon	1 turns	J Lead	0.406 in	Round	50 kOhm	150 mW	Surface Mount
