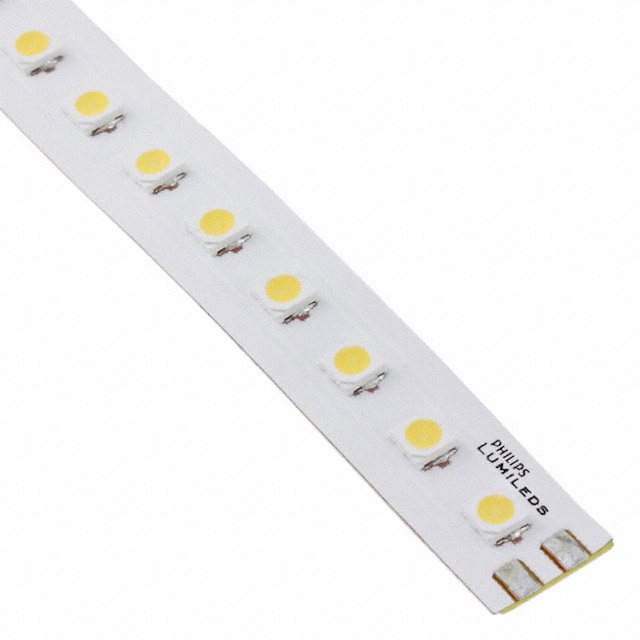

L235-3580AHLCBBAC0

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 3500K

Search across all available documentation for this part.

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 3500K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module LUXEON XF-3535L White, Warm Linear Light Strip, Flexible

Specification	L235-3580AHLCBBAC0	L235-3580 Series

CCT (K)	3500 K	3500 K
Color	White, Warm	White, Warm
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80	80
Current - Max [Max]	1.2 A	1.2 - 1.8 A
Current - Test	600 mA	600 - 900 mA
Height [z]	1.23 mm	1.23 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	143 lm/W	143 lm/W
Luminous Flux @ Current/Temperature	1548 lm	1548 - 4644 lm
Size / Dimension	100.00mm L per Segment	100.00mm L per Segment
Size / Dimension [x]	300 mm	300 - 1150 mm
Size / Dimension [y]	10 mm	5.25 - 10 mm
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	18 V	18 - 36 V

Part	Current - Max [Max]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Height [z]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Lens Type	Current - Test	Lumens/Watt @ Current - Test	Type	CCT (K)	Luminous Flux @ Current/Temperature	Configuration	Color
Lumileds L235-3580AHLCBBAC0	1.2 A	80	18 V	1.23 mm	10 mm	100.00mm L per Segment	300 mm	Flat	600 mA	143 lm/W	LED Module	3500 K	1548 lm	Flexible, Linear Light Strip	Warm, White
Lumileds L235-3580AHLGBBAC0	1.2 A	80	18 V	1.23 mm	10 mm	100.00mm L per Segment	600 mm	Flat	600 mA	143 lm/W	LED Module	3500 K	1548 lm	Flexible, Linear Light Strip	Warm, White
Lumileds L235-3580AULM5JAI0	1.8 A	80	36 V	1.23 mm	5.25 mm		1150 mm	Flat	900 mA	143 lm/W	LED Module	3500 K	4644 lm	Flexible, Linear Light Strip	Warm, White
