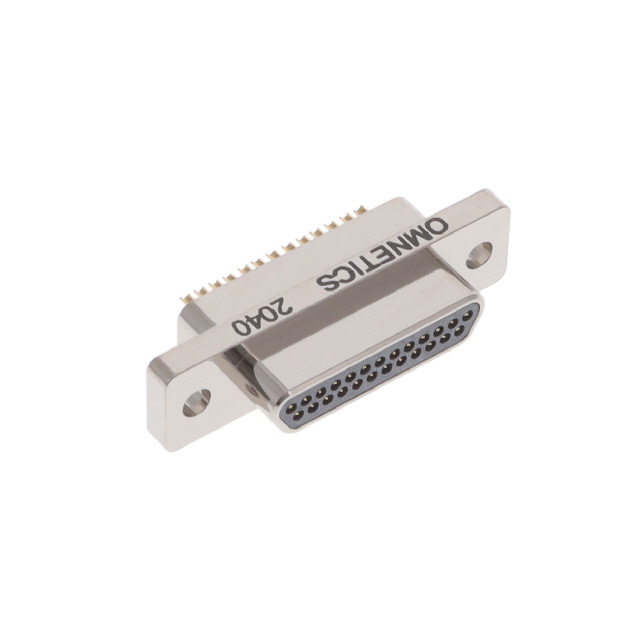

A98000-025

Active

Omnetics

CONN MICRO-D PLUG 25POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 25POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A98000-025	MMDP-025 Series

1st Connector	-	Plug, Male Pins
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY D-MIC-D 25P 457.2MM

Part	Contact Finish	2nd Connector	Shielding	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Type	Length [x]	Length [x]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Form	Contact Material	Contact Type	Connector Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Connector Style	Shell Material, Finish	Current Rating (Amps)	Mounting Type
Omnetics A98100-025	Gold	Individual Wire Leads	Unshielded	50 µin	1.27 µm	Plug, Male Pins	D-Type, Micro-D	457.2 mm	1.5 ft	Individual, Multiple
Omnetics A98000-025	Gold			50 µin	1.27 µm						-55 °C	125 °C	Housing/Shell (Unthreaded)	Stamped	Copper Alloy	Signal	Male Pins, Plug	Thermoplastic	0.05	0.05	2	D-Type, Micro-D	Aluminum, Electroless, Nickel Plated	3 A	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Type, Micro-D Plug, Male Pins Connector
