A98100-025

Active

Omnetics

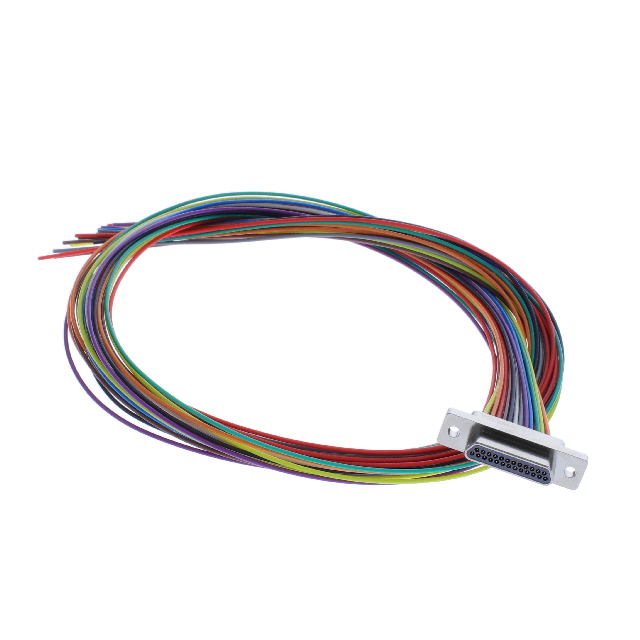

CABLE ASSY D-MIC-D 25P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-MIC-D 25P 457.2MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A98100-025	MMDP-025 Series

1st Connector	Plug, Male Pins	Plug, Male Pins
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	Micro-D, D-Type
Connector Type	-	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	-	Stamped
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Current Rating (Amps)	-	3 A
Dielectric Material	-	Thermoplastic
Flange Feature	-	Housing/Shell (Unthreaded)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Rows	-	2
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	-	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	-	0.05
Shell Size, Connector Layout	-	0.05
Shielding	Unshielded	Unshielded
Type	D-Type, Micro-D	D-Type, Micro-D

CABLE ASSY D-MIC-D 25P 457.2MM

Part	Contact Finish	2nd Connector	Shielding	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Type	Length [x]	Length [x]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Form	Contact Material	Contact Type	Connector Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Connector Style	Shell Material, Finish	Current Rating (Amps)	Mounting Type
Omnetics A98100-025	Gold	Individual Wire Leads	Unshielded	50 µin	1.27 µm	Plug, Male Pins	D-Type, Micro-D	457.2 mm	1.5 ft	Individual, Multiple
Omnetics A98000-025	Gold			50 µin	1.27 µm						-55 °C	125 °C	Housing/Shell (Unthreaded)	Stamped	Copper Alloy	Signal	Male Pins, Plug	Thermoplastic	0.05	0.05	2	D-Type, Micro-D	Aluminum, Electroless, Nickel Plated	3 A	Free Hanging (In-Line)
