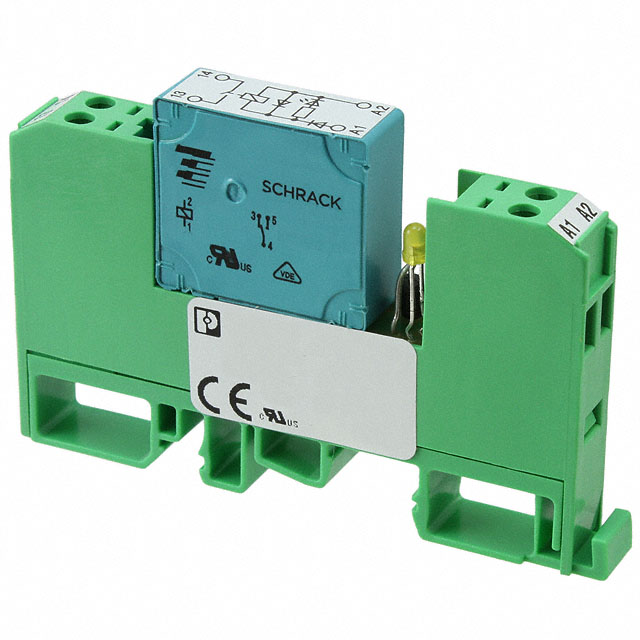

RELAY GEN PURPOSE SPST 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2942108
ActivePhoenix Contact
RELAY GEN PURPOSE SPST 6A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2942108 | 29421 Series |
|---|---|---|
| Approval Agency | UL, EAC, cULus | UL, EAC, cULus |
| Coil Current | 21 mA | 21 mA |
| Coil Resistance | 1.14 kOhms | 1.14 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A), SPST-NC (1 Form B), SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 A |
| Features | Socket Included | Socket Included |
| Load - Max Switching | 140 W, 1500 VA | 140 - 1500 W |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 11 ms | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29421 Series
RELAY GEN PURPOSE SPST 6A 24V
| Part | Coil Voltage | Coil Resistance | Contact Form | Contact Rating (Current) | Approval Agency | Switching Voltage | Release Time | Coil Type | Operate Time | Termination Style | Mounting Type | Coil Current | Contact Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2942108 | 24 VDC | 1.14 kOhms | SPST-NO (1 Form A) | 6 A | cULus, EAC, UL | 250 VAC, 250 VDC | 11 ms | Non Latching | 7 ms | Screw Terminal | DIN Rail | 21 mA | Silver Nickel (AgNi) | Socket Included | -20 C | 40 °C | 140 W, 1500 VA | General Purpose |
Phoenix Contact 2942111 | 24 VDC | 1.14 kOhms | SPST-NC (1 Form B) | 6 A | cULus, EAC, UL | 250 VAC, 250 VDC | 11 ms | Non Latching | 7 ms | Screw Terminal | DIN Rail | 21 mA | Silver Nickel (AgNi) | Socket Included | -20 C | 40 °C | 140 W, 1500 VA | General Purpose |
Phoenix Contact 2942153 | 24 VDC | 1.14 kOhms | SPDT (1 Form C) | 6 A | cULus, EAC, UL | 250 VAC, 250 VDC | 11 ms | Non Latching | 7 ms | Screw Terminal | DIN Rail | 21 mA | Silver Nickel (AgNi) | Socket Included | -20 C | 40 °C | 140 W, 1500 VA | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.70 | |
Description
General part information
29421 Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil DIN Rail
