2942111

Active

Phoenix Contact

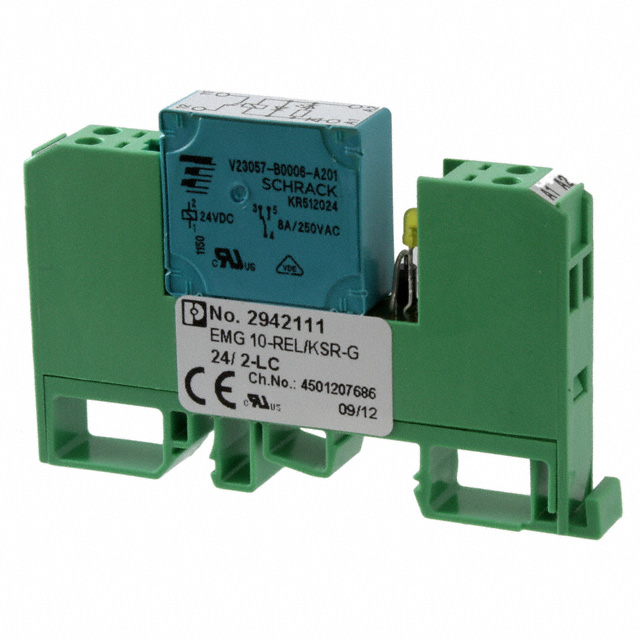

RELAY GEN PURPOSE SPST 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 6A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NC (1 Form B) 24VDC Coil DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2942111	29421 Series

Approval Agency	UL, EAC, cULus	UL, EAC, cULus
Coil Current	21 mA	21 mA
Coil Resistance	1.14 kOhms	1.14 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Contact Form	SPST-NC (1 Form B)	SPST-NO (1 Form A), SPST-NC (1 Form B), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	6 A	6 A
Features	Socket Included	Socket Included
Load - Max Switching	140 W, 1500 VA	140 - 1500 W
Mounting Type	DIN Rail	DIN Rail
Operate Time	7 ms	7 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	11 ms	11 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE SPST 6A 24V

Part	Coil Voltage	Coil Resistance	Contact Form	Contact Rating (Current)	Approval Agency	Switching Voltage	Release Time	Coil Type	Operate Time	Termination Style	Mounting Type	Coil Current	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Relay Type
Phoenix Contact 2942108	24 VDC	1.14 kOhms	SPST-NO (1 Form A)	6 A	cULus, EAC, UL	250 VAC, 250 VDC	11 ms	Non Latching	7 ms	Screw Terminal	DIN Rail	21 mA	Silver Nickel (AgNi)	Socket Included	-20 C	40 °C	140 W, 1500 VA	General Purpose
Phoenix Contact 2942111	24 VDC	1.14 kOhms	SPST-NC (1 Form B)	6 A	cULus, EAC, UL	250 VAC, 250 VDC	11 ms	Non Latching	7 ms	Screw Terminal	DIN Rail	21 mA	Silver Nickel (AgNi)	Socket Included	-20 C	40 °C	140 W, 1500 VA	General Purpose
Phoenix Contact 2942153	24 VDC	1.14 kOhms	SPDT (1 Form C)	6 A	cULus, EAC, UL	250 VAC, 250 VDC	11 ms	Non Latching	7 ms	Screw Terminal	DIN Rail	21 mA	Silver Nickel (AgNi)	Socket Included	-20 C	40 °C	140 W, 1500 VA	General Purpose
