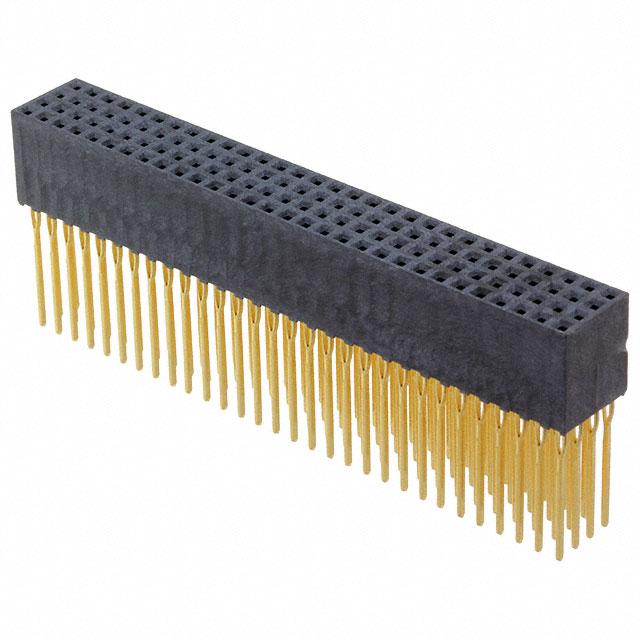

PTHF-130-02-GF-Q-368

Active

Samtec Inc.

CONN RCPT 120POS 0.079 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 120POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PTHF-130-02-GF-Q-368

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post [x]	0.482 in
Contact Length - Post [x]	12.24 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	9.35 mm
Insulation Height	0.368 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	120
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder, Press-Fit

Part	Insulation Color	Insulation Height	Insulation Height	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Termination	Contact Material	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material
Samtec Inc. PTHF-130-02-GF-Q-368	Black	9.35 mm	0.368 in	Receptacle	Forked	-55 °C	125 °C	Square	Through Hole	0.079 in	2 mm	0.079 in	2 mm	Gold	Press-Fit Solder	Phosphor Bronze	All	0.482 in	12.24 mm	Push-Pull	120	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
