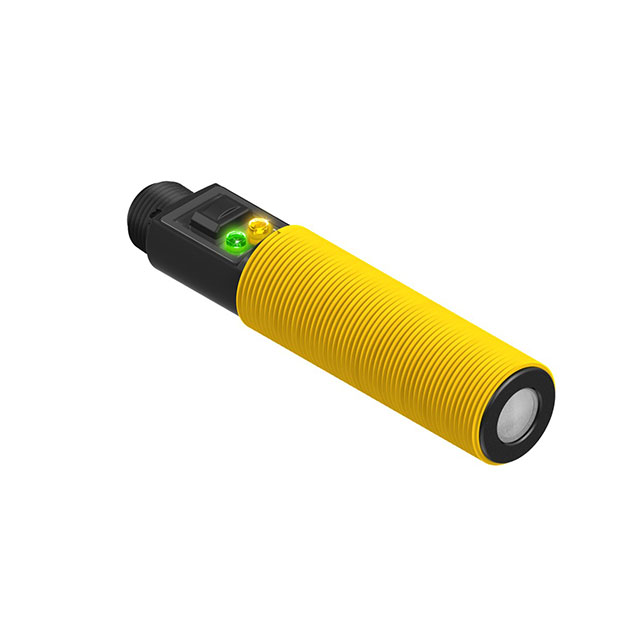

S18UIAQ
ActiveULTRASONIC SENSOR, U-GAGE™ S18U SERIES, STRAIGHT, 300 MM, 4 TO 20 MA, 10 TO 30 VDC, CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
S18UIAQ
ActiveULTRASONIC SENSOR, U-GAGE™ S18U SERIES, STRAIGHT, 300 MM, 4 TO 20 MA, 10 TO 30 VDC, CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S18UIAQ |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Thermoplastic Polyester |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | Analog Current |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 300 kHz |
| Sensing Distance [Max] | 300 mm, 11.811 in |
| Sensing Distance [Min] | 30 mm, 1.181 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S18UI Series
S18UIAQ is a U-GAGE™ S18U series sensor with analog output. It is a 18mm ultrasonic sensor with TEACH-mode programming. Fast, easy-to-use TEACH-Mode programming, no potentiometer adjustments. Short dead zone. Scalable output automatically distributes the output signal over the width of the programmed sensing window. This device has two bi-colored status LEDs. It has rugged encapsulated design for harsh environments and temperature compensation.
