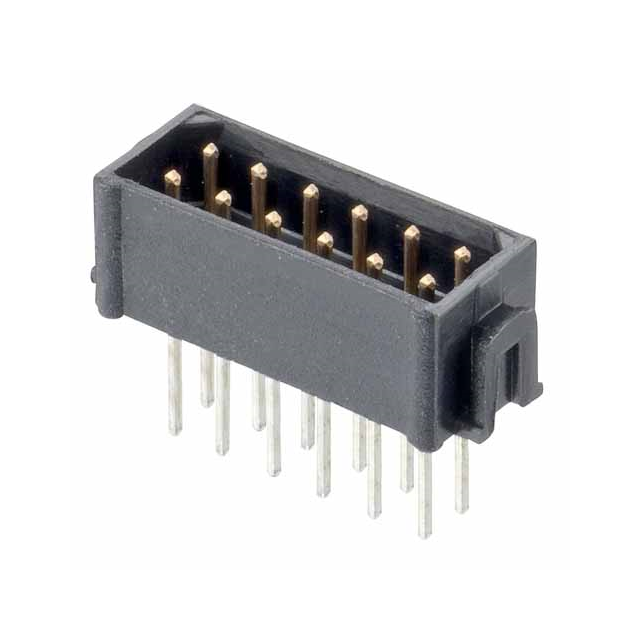

M80-7542042

Active

Harwin Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7542042

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	5.56 mm
Insulation Height [z]	0.219 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	13.51 mm, 7.85 mm, 10.2 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Material	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Number of Positions Loaded	Style	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Contact Material	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Height [z]	Insulation Height	Shrouding	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Voltage Rating	Connector Type	Number of Positions	Termination	Number of Rows
Harwin Inc. M80-7540442	3 µm	118.1 µin	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Black	0.079 in	2 mm	Gold	All	Board to Board Cable	2.2 A	0.177 in	4.5 mm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	Tin	-55 °C	125 °C	Latch Holder	0.219 in	5.56 mm	Shrouded - 4 Wall	Circular	29.5 Áin	0.75 Ám	UL94 V-0	0.079 in	2 mm	Through Hole	120 VDC	Header	4	Solder	2
Harwin Inc. M80-7542042	3 µm	118.1 µin	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Black	0.079 in	2 mm	Gold	All	Board to Board Cable	2.2 A	0.177 in	4.5 mm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Phosphor Bronze	Tin	-55 °C	125 °C	Latch Holder	0.219 in	5.56 mm	Shrouded - 4 Wall	Circular	29.5 Áin	0.75 Ám	UL94 V-0	0.079 in	2 mm	Through Hole	120 VDC	Header	20	Solder	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 3.60
Newark	Each	1000	$ 4.18
		2500	$ 3.77

General part information

Connector Header Through Hole 20 position 0.079" (2.00mm)
