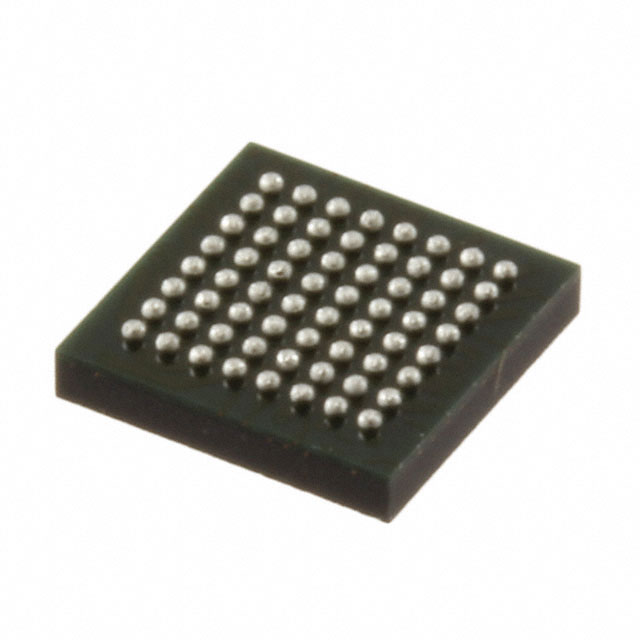

TC35661SBG-501,EL
ObsoleteToshiba Semiconductor and Storage
IC RF TXRX BLUETOOTH 64FBGA
Deep-Dive with AI
Search across all available documentation for this part.
TC35661SBG-501,EL
ObsoleteToshiba Semiconductor and Storage
IC RF TXRX BLUETOOTH 64FBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TC35661SBG-501,EL |
|---|---|
| Current - Receiving | 63 mA |
| Current - Transmitting | 63 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 64-FBGA |
| Power - Output | 2 dBm |
| Protocol | Bluetooth v4.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -90 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TC35661 Series
IC RF TxRx Only Bluetooth Bluetooth v4.0 2.4GHz 64-FBGA
Documents
Technical documentation and resources
No documents available
