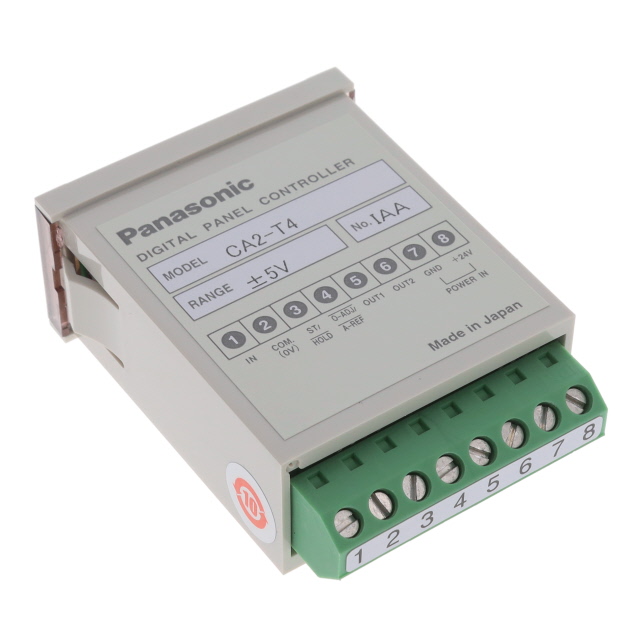

CA2-T4
ObsoletePanasonic Industrial Automation Sales
CONTROL PROC SS OUT 24V PANEL MT
Deep-Dive with AI
Search across all available documentation for this part.
CA2-T4
ObsoletePanasonic Industrial Automation Sales
CONTROL PROC SS OUT 24V PANEL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CA2-T4 |
|---|---|
| Control Method | On/Off |
| Display Characters - Height | 8 mm |
| Display Characters - Height [z] | 0.314 " |
| Display Type | LED - Red Characters |
| Input Range | 5 V |
| Number of Characters Per Row | 4 |
| Output Type | Solid State (2) |
| Panel Cutout Dimensions [x] | 45 mm |
| Panel Cutout Dimensions [y] | 22 mm |
| Termination Style | Screw Terminal |
| Type | Process Controller |
| Voltage - Supply | 24 VDC |
| Weight | 0.121 lb |
| Weight | 54.88 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CA2-T Series
Process Controller 24VDC Panel Mount
Documents
Technical documentation and resources
No documents available
