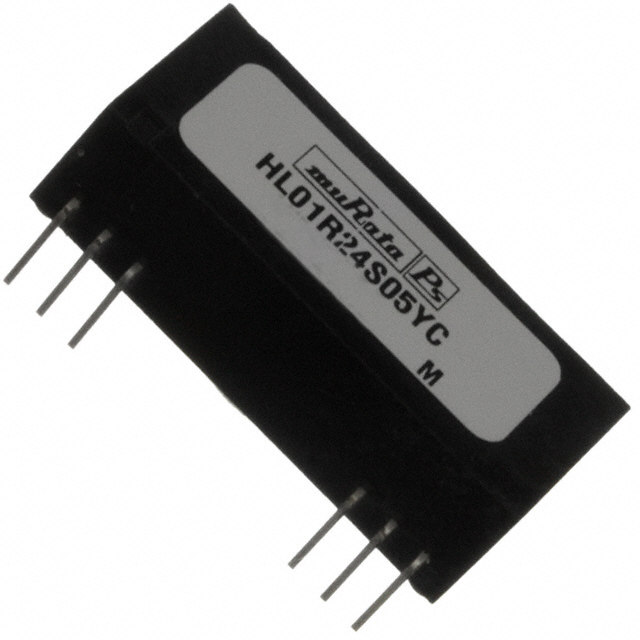

HL01R24S05YC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HL01R24S05YC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HL01R24S05YC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 58 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module |
| Package / Case | 12 Leads |
| Size / Dimension [x] | 32.8 mm |
| Size / Dimension [x] | 1.29 in |
| Size / Dimension [y] | 13.5 mm |
| Size / Dimension [y] | 0.53 in |
| Size / Dimension [z] | 0.38 in |
| Size / Dimension [z] | 9.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 25.2 V |
| Voltage - Input (Min) [Min] | 22.8 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
HL01R24 Series
DC DC CONVERTER 5V 1W
| Part | Applications | Current - Output (Max) [Max] | Package / Case | Package / Case | Voltage - Input (Max) [Max] | Voltage - Isolation | Mounting Type | Voltage - Output 1 | Efficiency | Number of Outputs | Voltage - Input (Min) [Min] | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. HL01R24S05YC | ITE (Commercial) | 200 mA | 24-DIP Module | 12 Leads | 25.2 V | 500 V | Through Hole | 5 V | 58 % | 1 | 22.8 V | Isolated Module | 32.8 mm | 1.29 in | 13.5 mm | 0.53 in | 0.38 in | 9.7 mm | 85 °C | -40 °C |
Description
General part information
HL01R24 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 22.8V - 25.2V Input
