0950-0-15-20-71-14-11-0
ObsoleteMill-Max Manufacturing Corp.

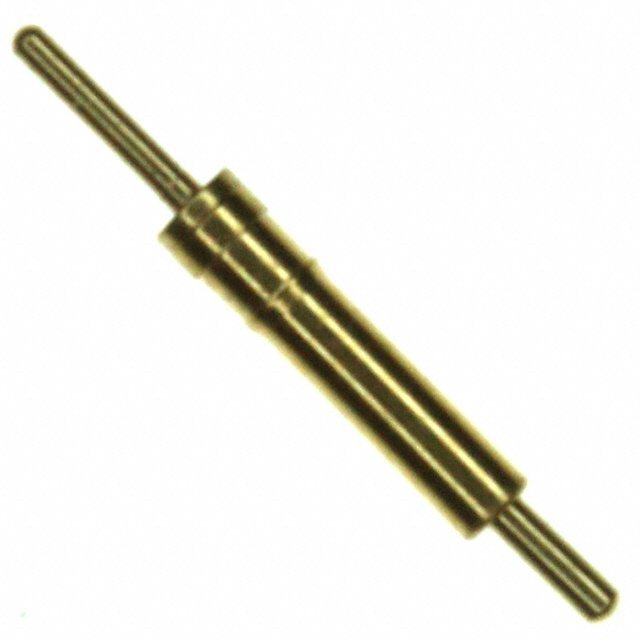

CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0950-0-15-20-71-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Copper Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 2 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 6.3 mm |
| Maximum Working Height [Max] | 0.248 in |
| Minimum Working Height [Min] | 4.9 mm |
| Minimum Working Height [Min] | 0.193 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 15 gf |
| Operating Force - Mid Compression | 50 gf |
| Pad Layout Dimension [diameter] | 0.043 in |
| Pad Layout Dimension [diameter] | 1.09 mm |
| Plunger Size [diameter] | 0.48 mm |
| Plunger Size [diameter] | 0.019 in |
| Recommended Working Height [z] | 0.221 in |
| Recommended Working Height [z] | 5.61 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
0950-0 Series
Contact Spring Through Hole
