IL19-C20-H05-3150-200

Active

TE Connectivity Raychem Cable Protection

CORD 14AWG 320-C20 - C19 6.56'

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CORD 14AWG 320-C20 - C19 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	IL19-C20-H05-3150-200

1st Connector	IEC 320-C20
2nd Connector	IEC 320-C19
Approval Agency Marking	SAA, CB, KEMA
Approved Countries	New Zealand, Australia, Netherlands
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	16 A
Features	Locking
Length [x]	2 m
Length [x]	6.56 ft
Number of Conductors	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VAC
Wire Gauge	13.5 AWG

Part	Approved Countries	Length	Length	1st Connector	Shielding	Cord Type	Voltage Rating	Current Rating (Amps)	Style	Features	Approval Agency Marking	2nd Connector	Number of Conductors	Color	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Wire Gauge
TE Connectivity Raychem Cable Protection IL19-C20-SJT-3160-183	Canada United States	6 ft	1.83 m	IEC 320-C20	Unshielded	SJT	125 VAC	18 A	Female Sockets Male Pins	Locking	cUL UL	IEC 320-C19	3	Black	70 °C	-25 °C
TE Connectivity Raychem Cable Protection IL19-C20-H05-3150-200	Australia Netherlands New Zealand			IEC 320-C20	Unshielded	H05VV-F	250 VAC	16 A	Female Sockets Male Pins	Locking	CB KEMA SAA	IEC 320-C19	3	Black	70 °C	-25 °C	2 m	6.56 ft	13.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

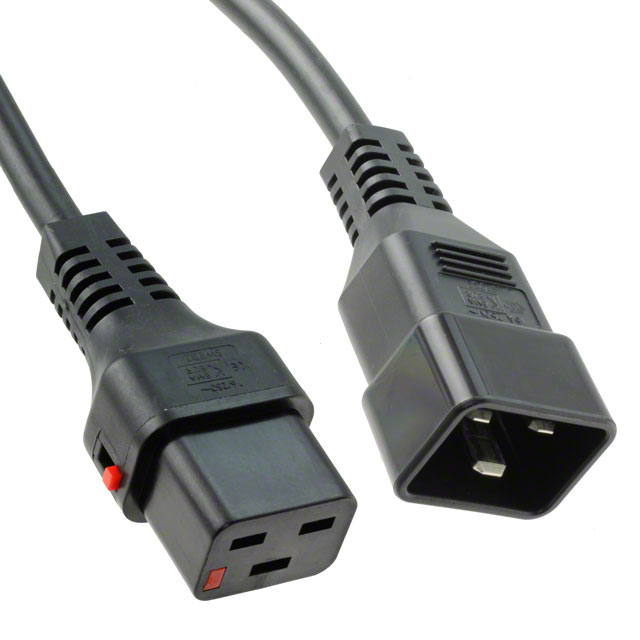

6.56' (2.00m) Power Cord Black IEC 320-C20 To IEC 320-C19 H05VV-F
