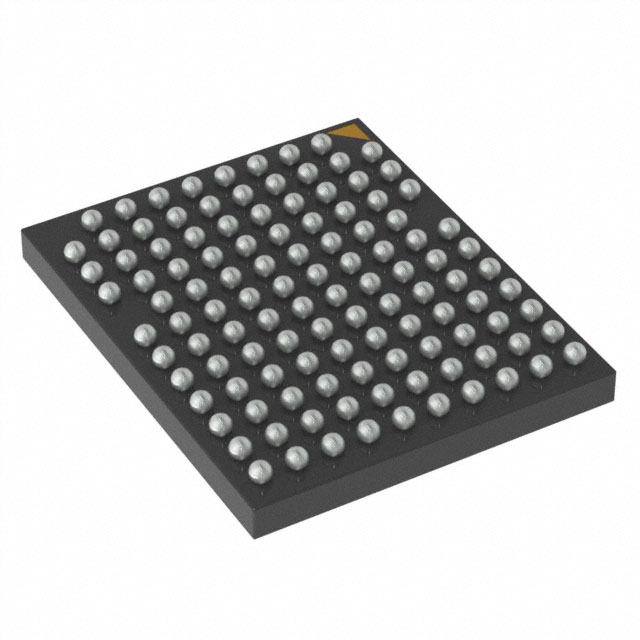

CY8C6347BZI-BLD53
ActiveInfineon Technologies
IC MCU 32BIT 1MB FLASH 116BGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CY8C6347BZI-BLD53
ActiveInfineon Technologies
IC MCU 32BIT 1MB FLASH 116BGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CY8C6347BZI-BLD53 |
|---|---|
| Connectivity | I2C, SPI, UART/USART, USB, LINbus, QSPI |
| Core Processor | ARM® Cortex®-M4/M0 |
| Core Size [custom] | 32-Bit Dual-Core |
| Data Converters [custom] | D/A 1x12b |
| Data Converters [custom] | A/D 8x12b SAR |
| EEPROM Size | 32 K |
| Mounting Type | Surface Mount |
| Number of I/O | 78 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 116-WFBGA |
| Peripherals | Brown-out Detect/Reset, DMA, PWM, POR, Cap Sense, WDT, I2S, LCD, Bluetooth |
| Program Memory Size | 1 MB |
| Program Memory Type | FLASH |
| RAM Size | 288 K |
| Speed | 150 MHz |
| Speed | 100 MHz |
| Supplier Device Package | 116-BGA |
| Supplier Device Package [x] | 5.2 |
| Supplier Device Package [y] | 6.4 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.7 V |
CY8C6347 Series
| Part | RAM Size | Oscillator Type | Core Processor | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Core Size [custom] | Number of I/O | Program Memory Size | Connectivity | Package / Case | Speed | Speed | Data Converters | Supplier Device Package | Program Memory Type | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Peripherals | Supplier Device Package [y] | Supplier Device Package [x] | EEPROM Size | Data Converters [custom] | Data Converters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies | 288 K | External Internal | ARM® Cortex®-M0+ ARM® Cortex®-M4F | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 36 | 1 MB | FIFO I2C IrDA Microwire SmartCard SPI SSP UART/USART | 68-VFQFN Exposed Pad | 150 MHz | 100 MHz | 16x12b Sigma-Delta 1x8/12b A/D 16x10b SAR D/A 2x7b | 68-QFN (8x8) | FLASH | 3.6 V | 1.7 V | Brown-out Detect/Reset CapSense Crypto - AES DMA LCD LVD POR PWM RSA SHA Temp Sensor TRNG WDT | |||||
Infineon Technologies | 288 K | Internal | ARM® Cortex®-M4/M0 | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 70 | 1 MB | I2C LINbus QSPI SPI UART/USART USB | 104-UFBGA WLCSP | 150 MHz | 100 MHz | 104-WLCSP | FLASH | 3.6 V | 1.7 V | Bluetooth Brown-out Detect/Reset Cap Sense DMA I2S LCD POR PWM WDT | 5 | 3.8 | 32 K | D/A 1x12b | A/D 8x12b SAR | |
Infineon Technologies | 288 K | Internal | ARM® Cortex®-M4/M0 | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 78 | 1 MB | I2C LINbus QSPI SPI UART/USART USB | 116-WFBGA | 150 MHz | 100 MHz | 116-BGA | FLASH | 3.6 V | 1.7 V | Bluetooth Brown-out Detect/Reset Cap Sense DMA I2S LCD POR PWM WDT | 6.4 | 5.2 | 32 K | D/A 1x12b | A/D 8x12b SAR | |
Infineon Technologies | 288 K | External Internal | ARM® Cortex®-M0+ ARM® Cortex®-M4F | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 69 | 1 MB | I2C IrDA Microwire SmartCard SPI SSP UART/USART | 104-UFBGA WLCSP | 150 MHz | 100 MHz | 16x12b SAR A/D 16x10b D/A 1x12b Sigma-Delta | 104-WLCSP | FLASH | 3.6 V | 1.7 V | Brown-out Detect/Reset CapSense I2S LCD LVD POR PWM WDT | 5 | 3.8 | |||
Infineon Technologies | 288 K | Internal | ARM® Cortex®-M4/M0 | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 70 | 1 MB | I2C LINbus QSPI SPI UART/USART USB | 104-UFBGA WLCSP | 150 MHz | 100 MHz | 104-WLCSP | FLASH | 3.6 V | 1.7 V | Bluetooth Brown-out Detect/Reset Cap Sense DMA I2S LCD POR PWM WDT | 5 | 3.8 | 32 K | D/A 1x12b | A/D 8x12b SAR | |
Infineon Technologies | 288 K | External Internal | ARM® Cortex®-M0+ ARM® Cortex®-M4F | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 36 | 1 MB | FIFO I2C IrDA Microwire SmartCard SPI SSP UART/USART | 68-VFQFN Exposed Pad | 150 MHz | 100 MHz | 16x12b SAR A/D 16x10b D/A 1x12b Sigma-Delta | 68-QFN (8x8) | FLASH | 3.6 V | 1.7 V | Brown-out Detect/Reset CapSense Crypto - AES DMA LCD LVD POR PWM WDT | |||||
Infineon Technologies | 288 K | External Internal | ARM® Cortex®-M0+ ARM® Cortex®-M4F | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 84 I/O | 1 MB | FIFO I2C IrDA Microwire SmartCard SPI SSP UART/USART USB | 124-VFBGA | 150 MHz | 100 MHz | 16x12b Sigma-Delta 1x8/12b A/D 16x10b SAR D/A 2x7b | 124-VFBGA (9x9) | FLASH | 3.6 V | 1.7 V | Brown-out Detect/Reset CapSense DMA I2S LCD LVD POR PWM Temp Sensor WDT | |||||
Infineon Technologies | 288 K | External Internal | ARM® Cortex®-M0+ ARM® Cortex®-M4F | Surface Mount | 85 °C | -40 °C | 32-Bit Dual-Core | 78 | 1 MB | FIFO I2C IrDA Microwire SmartCard SPI SSP UART/USART | 116-WFBGA | 150 MHz | 100 MHz | 16x12b Sigma-Delta 1x8/12b A/D 16x10b SAR D/A 2x7b | 116-BGA | FLASH | 3.6 V | 1.7 V | Brown-out Detect/Reset CapSense Crypto - AES DMA I2S LCD LVD POR PWM RSA SHA Temp Sensor TRNG WDT | 6.4 | 5.2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.81 | |
| 10 | $ 12.69 | |||
| 25 | $ 12.16 | |||
| 80 | $ 10.72 | |||
| 364 | $ 10.19 | |||
| 728 | $ 9.53 | |||
| 1092 | $ 8.74 | |||
Description
General part information
CY8C6347 Series
ARM® Cortex®-M4/M0 PSoC® 6 BLE Microcontroller IC 32-Bit Dual-Core 100MHz, 150MHz 1MB (1M x 8) FLASH 116-BGA (5.2x6.4)
